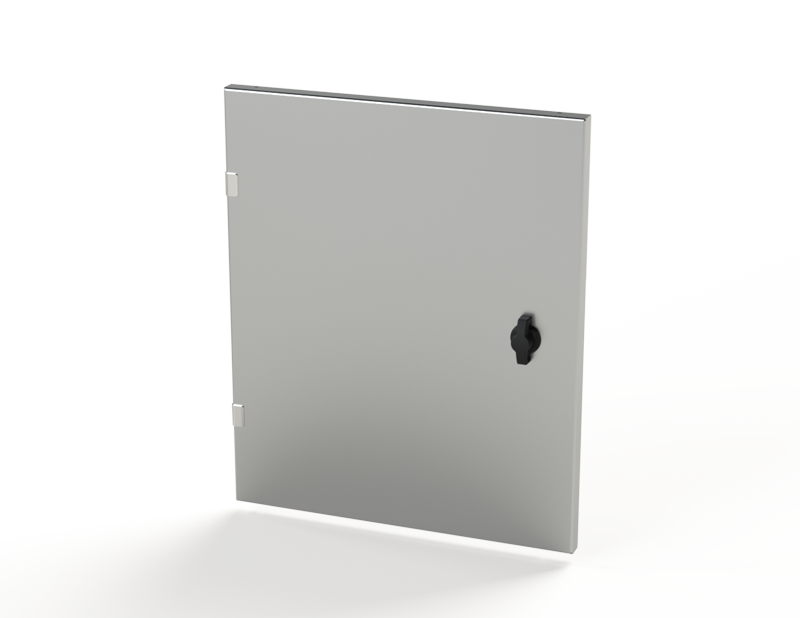

SCE-20R1606LP - Type-3R Hinged Cover Enclosure
$171.60
- Height
- 20.00"
- Width
- 16.00"
- Depth
- 6.00"
- Est. Ship Weight
- 25.00 lbs
Product information
Technical details
Type-3R Hinged Cover Enclosure
Category: Wall-Mount Enclosures > Hinged Cover 3R Enclosures
Specifications
| Part Number | SCE-20R1606LP |
|---|---|
| Description | Type-3R Hinged Cover Enclosure |
| Height | 20.00" |
| Width | 16.00" |
| Depth | 6.00" |
| Price Code | N3 |
| List Price | $171.60 |
| Catalog Page | 114 |
| Est. Ship Weight | 25.00 lbs |
Construction
- 0.048 In., 0.063 In. & 0.075 In. Galvannealed steel
- Concealed hinges
- Spot weld construction
- Rain cap
- Mounting hole in back of enclosure
- Collar studs 3/8-16 provided for mounting optional panels
- Black quarter turn wing knob latch with padlocking provisions
- Doors open 180 degrees
- Pour in place oil & water resistant gasket
- Ground stud on door & body
- 3/8-16 grounding kit
- Sub-panel mounting hardware included
Application
Designed to house electrical controls, instruments and components in an outdoor environment. Protects against rain, sleet and snow. For Details about the Design, Performance Expectations, Applications and Design Suggestions -
Options
Optional mounting straps or mounting foot kits available.
Finish
ANSI-61 gray powder coating inside and out. Optional sub-panels are powder coated white.
Industry Standards - (IS7)
- NEMA Type 3R
- UL Listed Type 3R
- CSA Type 3R
- IEC 60529
- IP 32
