Saginaw Control & Engineering
SCE-12N1204NKLP - Nema-1 Enclosure w/Knockouts
$77.09
- Height
- 12.00"
- Width
- 12.00"
- Depth
- 4.00"
- Est. Ship Weight
- 10.00 lbs
Product information
Technical details
Nema-1 Enclosure w/Knockouts
Category: Wall-Mount Enclosures > General Purpose Type 1 Enclosures with Knockouts
Specifications
| Part Number | SCE-12N1204NKLP |
|---|---|
| Description | Nema-1 Enclosure w/Knockouts |
| Height | 12.00" |
| Width | 12.00" |
| Depth | 4.00" |
| Price Code | N1 |
| List Price | $77.09 |
| Catalog Page | 999 |
| Est. Ship Weight | 10.00 lbs |
Construction
- 0.048 In., 0.063 In. & 0.075 In. carbon steel depending on enclosure size.
- Spot weld construction.
- Knockouts provided in the top, bottom right and left side.
- Standoffs provided for mounting optional panels.
- Doors open 180 degrees.
- Black quarter turn latches
- Latches are opened and closed with a screwdriver.
- Ground stud on door.
- Mounting holes in back of enclosure
- Butt Hinge - Black
Application
Designed to house electrical controls, instruments and components in areas that do not require oil, water and dust tight protection.
Finish

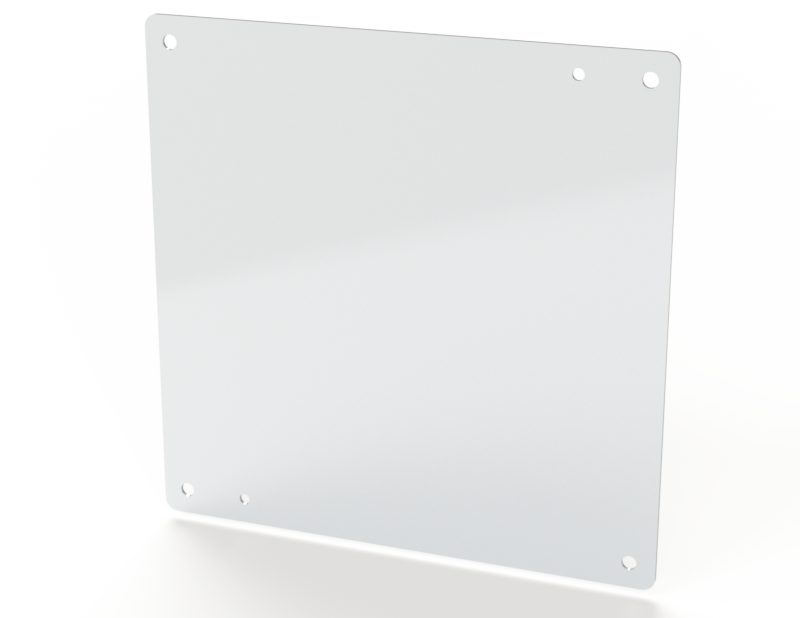

SCE-09 gray powder coating inside and out. Optional sub-panels are powder coated white.
Industry Standards - (IS8)
- NEMA Type 1
- UL Listed Type 1
- CSA Type 1
- IEC 60529
- IP 30
