Saginaw Control & Engineering

SCE-12H2408LP - Nema 4 LP Enclosure

$321.85

Height: 12.00"
Width: 24.00"
Depth: 8.00"
Est. Ship Weight: 28.00 lbs

Request freight quote

Ships by freight. Request a quote and we'll confirm shipping and lead time.

Nema 4 LP Enclosure

Category: Wall-Mount Enclosures > NEMA 12 and 4 Clamp Fastened Single Door Enclosures

Specifications

Part Number	SCE-12H2408LP
Description	Nema 4 LP Enclosure
Height	12.00"
Width	24.00"
Depth	8.00"
Price Code	A3
List Price	$321.85
Catalog Page	98
Est. Ship Weight	28.00 lbs

Construction

0.075 In. carbon steel.
Seams continuously welded and ground smooth.
Flange trough collar around all sides of door opening.

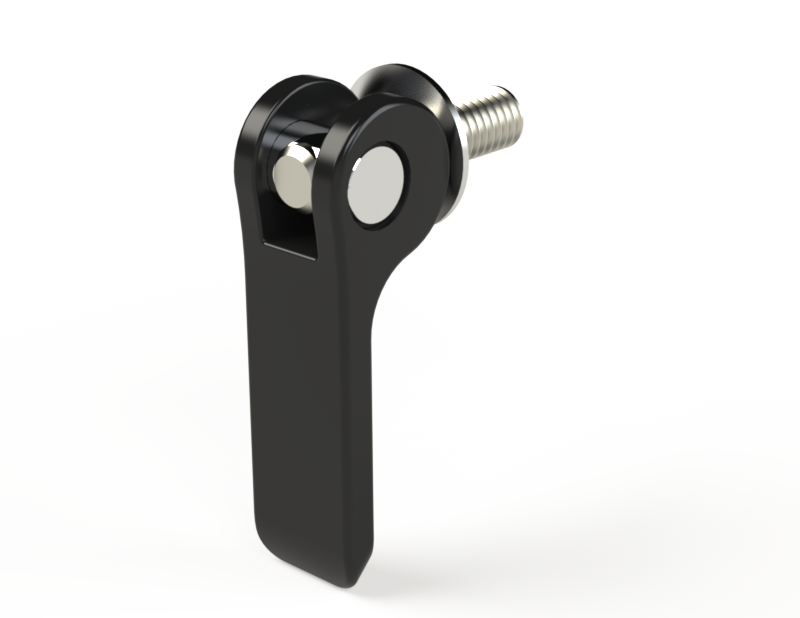

Door clamps are quick and easy to operate.
Concealed hinge.
Hasp and staple for padlocking.
Pour in place oil & water resistant gasket

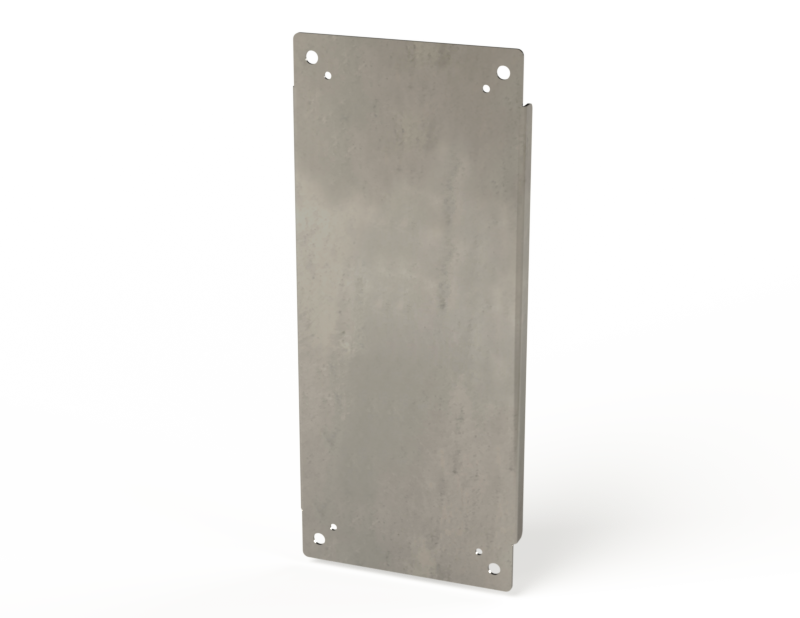

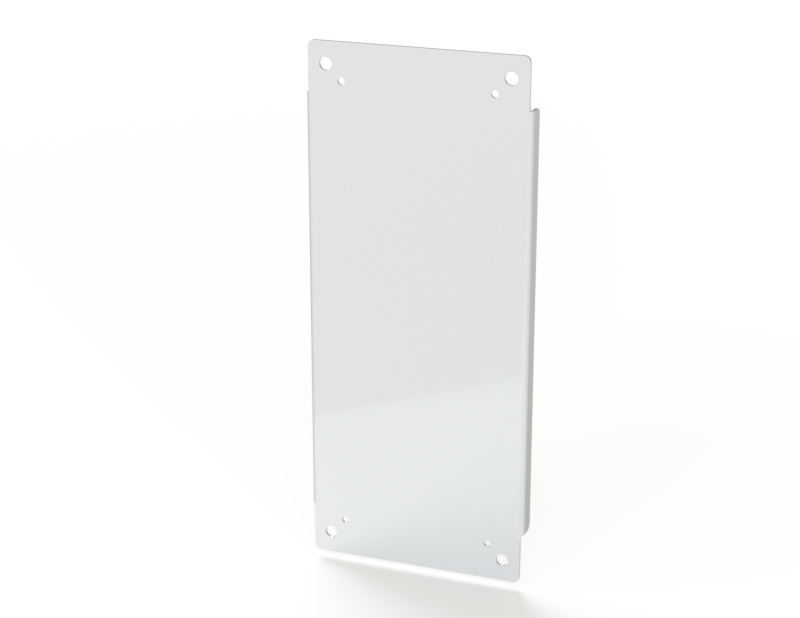

Collar studs 3/8-16 provided for mounting optional panels.
Ground stud on door.
Removable print pocket furnished if height and width of enclosure is greater than 12 inches.

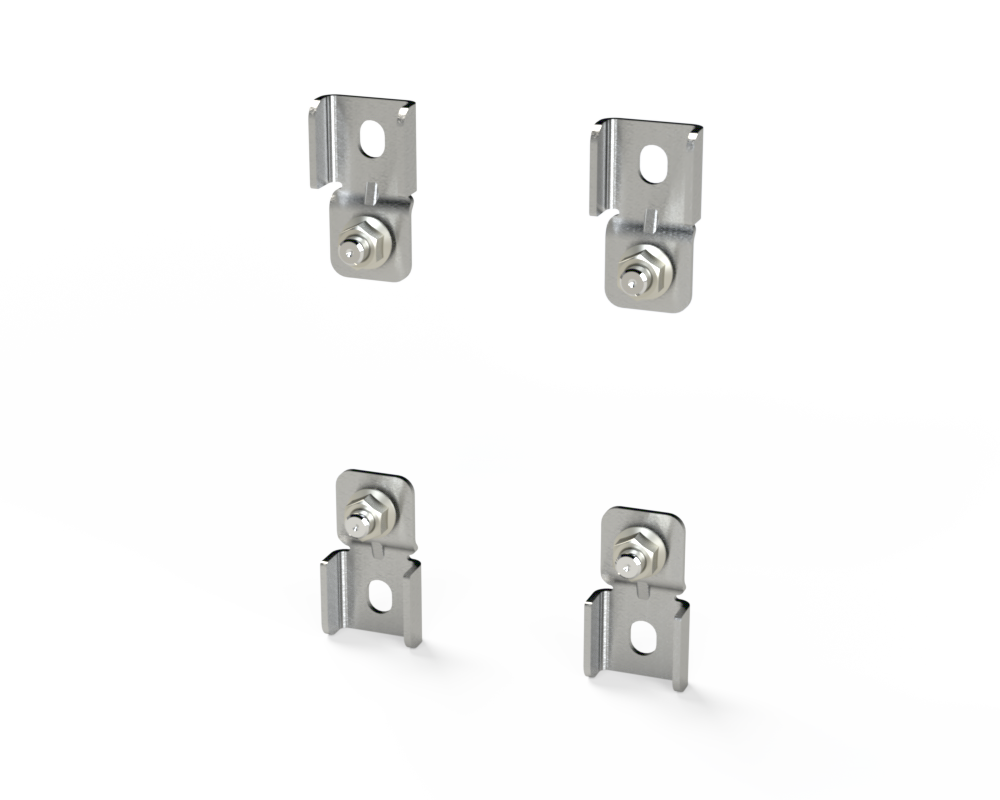

External mounting provision top and bottom of back.

Application

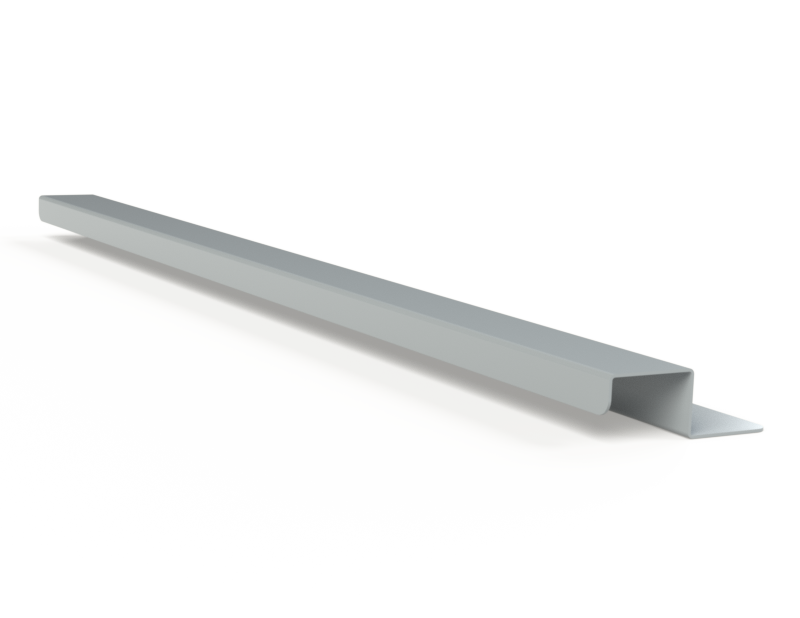

Designed to house electrical and electronic controls, instrument, and components. Provides protection from dust, dirt, oil and water. For outdoor application a drip shield and drain vent is recommended. For Details about the design, performance expectations, applications and design suggestions -

Finish

ANSI-61 gray powder coating inside and out. Optional panels are powder coated white.

Industry Standards - (IS4)

NEMA Type 3R, 4, 12 and Type 13
UL Listed Type 3R, 4 and 12
CSA Type 3R, 4 and 12
IEC 60529
IP 66

Notes

Provision for Lifting Lugs on enclosures when Height >48" and Depth >16". The Lifting Lug assembly will be included with the enclosure bolt pack. Special Instructions apply for IS3, IS4 and IS6 to maintain the environmental rating of Type 3R for these parts. Instructions are located on the enclosure door. Drip shield is required on IS3, drip shield is recommended on IS4 and IS6. Drain holes are required on all.
