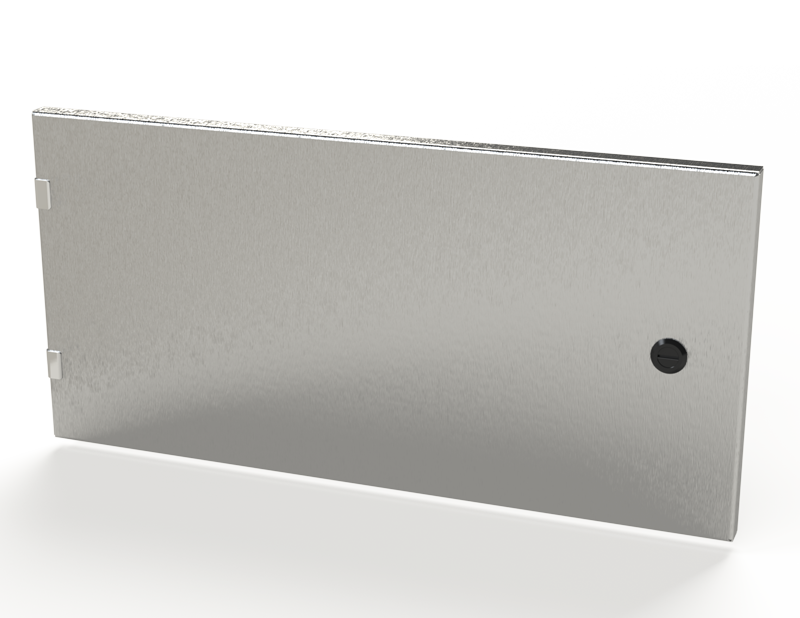

SCE-12EL2406SSLP - S.S. EL Enclosure

S.S. EL Enclosure

Category: Wall-Mount Enclosures (Stainless Steel) > Enviroline Series Single-Door Enclosures (304 and 316 Stainless Steel) > Enviroline Series Single-Door Enclosures (304 Stainless Steel)

Specifications

Construction

• 0.075 In. stainless steel Type 304.
• Seams continuously welded and ground smooth.
• Flange trough collar around all sides of door opening.
• Pour in place oil & water resistant gasket
• Collar studs 3/8-16 provided for mounting optional panels.
• Stainless steel concealed hinges.
• Removable and interchangeable doors.
• Black quarter turn latches.
• Latches are opened or closed with a screwdriver (optional tamper-resistant inserts are available).
• Mounting holes in back of enclosure.
• Mounting hardware, sealing washer and hole plug included.
• Removable print pocket furnished if height and width of enclosure is greater than 12 inches.
• Ground studs on door and body.

Application

Designed to house electrical and electronic controls, instruments and components in areas which may be regularly hosed down or are in very wet conditions. Provides protection from dust, dirt, oil, and water. For outdoor application a drip shield and drain vent is recommended. For details about the design, performance expectations, applications and design suggestions -

Options

Optional mounting feet available. Door hardware available.

Finish

#4 brushed finish on all exterior surfaces. Optional sub-panels are powder coated white.

Industry Standards - (IS6)

• NEMA Type 3R, 4, 4X, 12 and Type 13
• UL Listed Type 3R, 4, 4X and 12
• CSA Type 4, 4X and 12
• IEC 60529
• IP 66

Notes

Special Instructions apply for IS3, IS4 and IS6 to maintain the environmental rating of Type 3R for these parts. Instructions are located on the enclosure door. Drip shield is required on IS3, drip shield is recommended on IS4 and IS6. Drain holes are required on all.
