SCE-10R84 - Type-3R Screw Cover Enclosure
$101.31
- Height
- 10.00"
- Width
- 8.00"
- Depth
- 4.00"
- Est. Ship Weight
- 6.00 lbs
Product information
Technical details
Type-3R Screw Cover Enclosure
Category: Wall-Mount Enclosures > Screw Cover 3R Enclosures
Specifications
| Part Number | SCE-10R84 |
|---|---|
| Description | Type-3R Screw Cover Enclosure |
| Height | 10.00" |
| Width | 8.00" |
| Depth | 4.00" |
| Price Code | N3 |
| List Price | $101.31 |
| Catalog Page | 116 |
| Est. Ship Weight | 6.00 lbs |
Construction
- 0.048 In. Galvannealed steel
- Spot weld construction.
- Rain cap.
- Mounting hole in back of enclosure.
- Slip on removable screw cover.
- Padlocking provisions.
- No gasket.
- No subpanel or provisions.
- Ground studs on door and body.
Application
Designed to house electrical controls, instruments and components in an outdoor environment. Protects against rain, sleet and snow. For Details about the Design, Performance Expectations, Applications and Design Suggestions -
Options

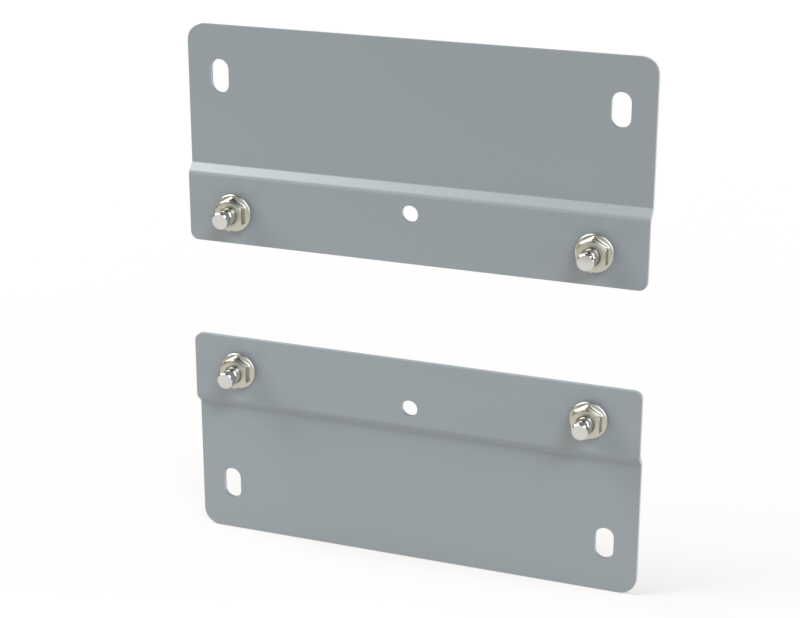

Optional mounting straps available
Finish
ANSI-61 gray powder coating inside and out.
Industry Standards - (IS7)
- NEMA Type 3R
- UL Listed Type 3R
- CSA Type 3R
- IEC 60529
- IP 32
