Product information
Technical details
Midget.
Agency Approvals
- UL Recognized, Fuseholder standards UL 4248-1
- UL File No. IZLT.E35113
- CSA Certified: 22.2 No 39 - M1987, File No. LR21455
- CE compliant to IEC 60947-1
- RoHS Compliant
Specifications

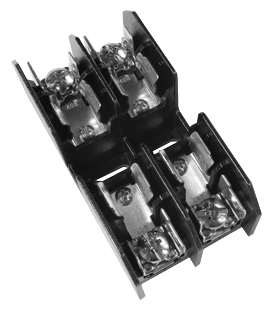

MPN 6M30A2SPQ
| Amps | 30 |
|---|---|
| Volts | 600 |
| Poles | 2 |
| SC Withstand | 100KA |
| Fuse Class | 10X38, M Class |
| Wire Range | #10 - #18 AWG CU |
| Product Style | Open |
| Wire Connector Style | SEMS Screw with Quick Connects |
| Bare Wire Range | #10 - #18 |
| Insulator Material | Thermoplastic |
| Length x Width x Depth | 3.12" x 1.60" x 1.29" |
| Weight | 0.17 lbs. |
| Available Cover Part # | CCM630 |
| Bare Wire Range (CU) | #10 - #18 |
| Agency Approvals | UL Recognized, CSA Certified, CE Compliant |
| Bare Wire Range (AL) | -- |
| Country of Origin | USA |
| Style | Open |
| Voltage (AC/DC) | 600 |
| Indicating | - |
| Base Materials | Thermoplastic |
| DIN Rail Adapters | Yes |
| Covers Available | Yes |
| CSA Certified | 22.2 No 39 - M1987, File No. LR21455 |
| Flammability Rating | UL94 V-0 |
| Protection Rating | IP-20 |
| Connector | Aluminum, tin plated |
| Fuse Clip | Copper alloy, tin plated |
| Box Connector | Copper, tin plated |
| Terminal set screws | Steel, zinc plated |
| Connector mounting screws | Steel, zinc plated |
| - Insulator base maximum temperature rating | 125°C (UL RTI) |
| - Touch protection | IP-20 (IEC 60529) with optional cover CC630 (See accessories) |
| Mounting (Panel) | Fuse Information |
| Cover | Wire Strip length - 7/16” |
| - Cover Puller | CVR-MCC |
| - DIN Rail Adapter | Din R-1 |
