Marathon Special Products

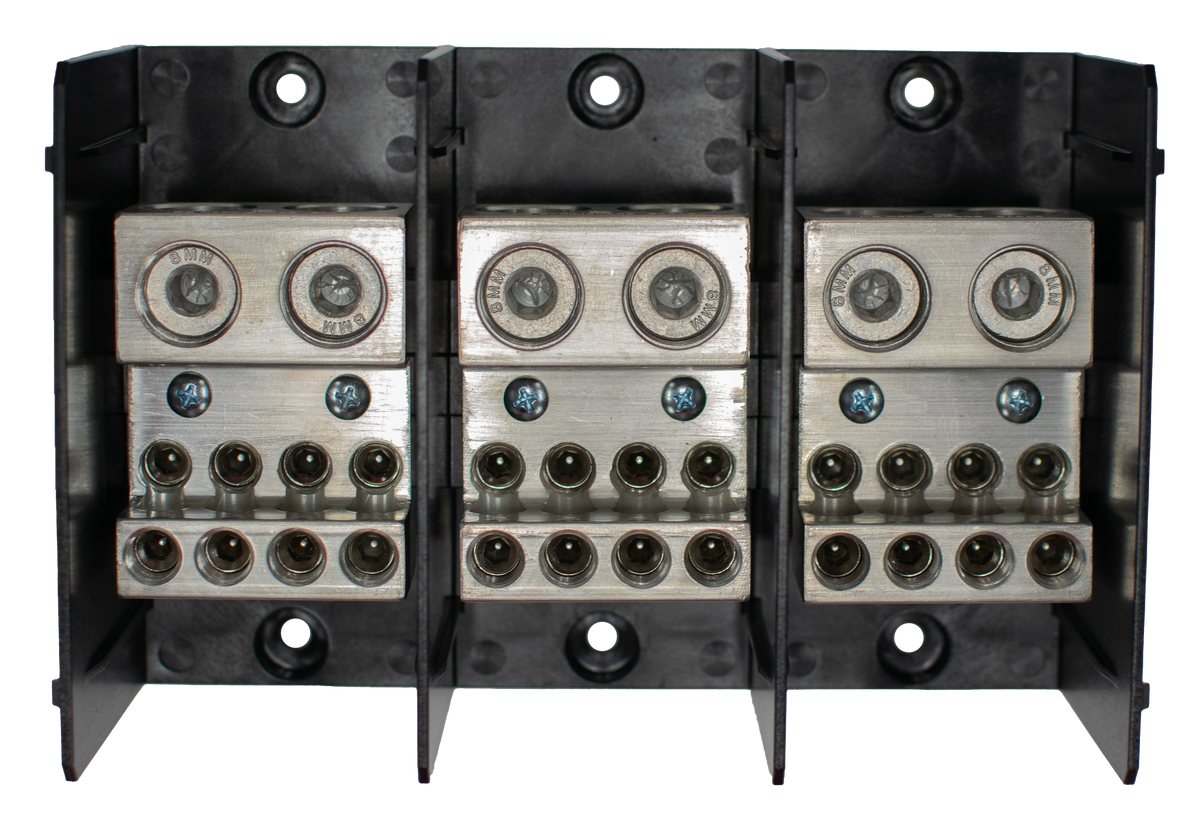

1453986 Open Splicer & Distribution
$1,231.93
- Amps
- 760
- Volts
- 600
- Poles
- 3
Product information
Technical details
Open Splicer & Distribution.
Agency Approvals
- cULus - UL Listed, investigated to UL 1953, UL File QPQS.E309401 and UL evaluated to CSA 22.2 No 158 File no.
- CSA - certifed to C22.2 No. 158, File No. LR19766 (Wire classes B & C only)
- CE compliant to IEC 60947-7-1
Accessories and covers: CC1453, CC1452, CC1451
Specifications
MPN 1453986
| Amps | 760 |
|---|---|
| Volts | 600 |
| Poles | 3 |
| Line Side Wire Range (AWG/kcmil) | 500 - #4 |
| Load Side Wire Range (AWG/kcmil) | 2/0 - #14 |
| Insulator Material | Phenolic |
| Connector Material | CU |
| Line Side Connector Openings / Pole | 2 |
| Load Side Connector Openings / Pole | 8 |
| Feeder Circuit Compliant Per UL508 | -- |
| Covers Available | Yes |
| Wire Range AWG / kcmil | 2/0 - #14 |
| Connector Openings / Pole | 8 |
| Feeder Circuit Compliant per UL 508 | Yes |
| Available Cover Part # | CC1453 |
| Style | Open |
| Line Side AL Wire Range | 500 - #4 |
| Load Side AL Wire Range | 2/0 - #14 |
| Line Side CU Wire Range | 500 - #4 |
| Load Side CU Wire Range | 2/0 - #14 |
| Length x Width x Depth | 8.54" x 5.5" x 3.13" |
| Weight | 5.44 lbs. |
| Agency Approvals | UL Listed, Canadian UL Recognized, CSA Certified, CE Compliant |
| Country of Origin | USA |
| Line | (2) 500 kcmil - #4 AWG |
| Load | (8) 2/0 - #14 AWG |
| Flammability Rating | UL94 V0 |
| Insulator base | Thermoplastic |
| Insulator base temperature rating | -40°C to 125°C (UL RTI) |
| Connector | copper, tin plated |
| Line terminal set screws | aluminum, tin plated |
| Load terminal set screws | steel, nickel plated |
| Connector mounting screws | steel, zinc plated |
| Wire strip length | 1 1/8 in. (29mm) |
| Terminal screw drive | 3/8 in. hex |
| Solid copper wire range | #10 - 14 |
| Top row | 3/4 in. (19mm) |
| Bottom row | 1 3/8 in. (35mm) |
| Mounting (Panel) | For use with 1/4 fastener. |
| Covers | Snap on cover abailable upon request |
| Catalog number | Cover is black thermoplastic |
