Product information
Technical details
Stud.
Agency Approvals
- cULus - UL Listed, investigated to UL 1953, UL File QPQS.E309401 and UL evaluated to CSA 22.2 No 158 File no.
- CSA - certifed to C22.2 No. 158, File No. LR19766 (wire classes B & C only)
- CE compliant to IEC 60947-7-1
Accessories and covers: CC1453, CC1452, CC1451
Specifications

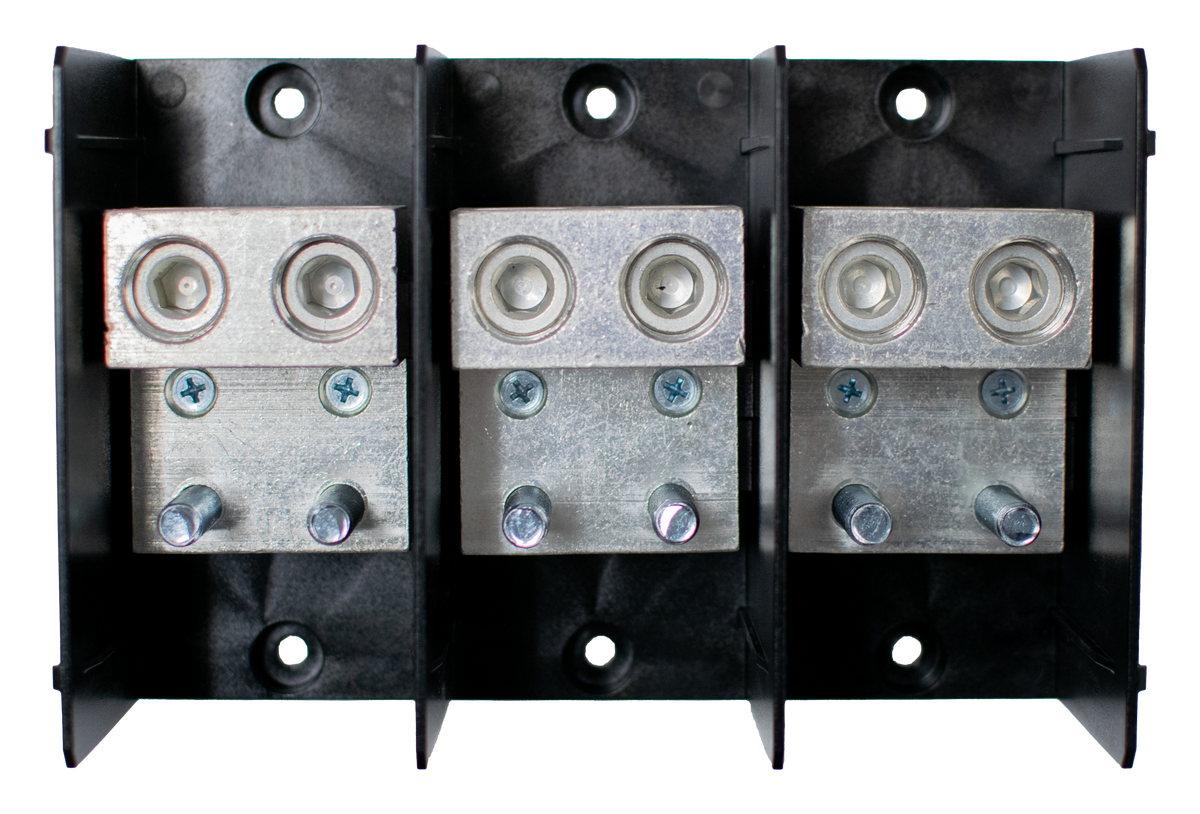

MPN 1453599
| Amps | 760 |
|---|---|
| Volts | 600 |
| Poles | 3 |
| Voltage | 600 |
| Conn. | AL |
| LINE SIDE Wire Range AWG / kcmil -or- Stud Size | 500 - #4 |
| Line Side Connector Openings / Pole | 2 |
| LOAD SIDE Wire Range AWG / kcmil -or- Stud Size | 3/8-16 x 1.31 |
| Load Side Connector Openings / Pole | 2 |
| Covers Available | Yes |
| Wire Range AWG / kcmil | Prepared Wire 3/8 - 16 Stud |
| Connector Openings / Pole | 2 |
| Feeder Circuit Compliant per UL 508 | Yes |
| Available Cover Part # | CC1453 |
| Style | Open w/ Stud(s) |
| Line Side AL Wire Range | 500 - #4 |
| Load Side AL Wire Range | Prepared Wire |
| Line Side CU Wire Range | 500 - #4 |
| Load Side CU Wire Range | Prepared Wire |
| Connector Material | AL |
| Insulator Material | Thermoplastic |
| Length x Width x Depth | 8.54" x 5.5" x 3.13" |
| Weight | 5.44 lbs. |
| Agency Approvals | UL Listed, Canadian UL Recognized, CSA Certified, CE Compliant |
| Country of Origin | USA |
| Line | (2) 500kcmil - #4 AWG |
| Load | (2) 3/8 - 16 X 1 5/16 stud |
| Flammability Rating | UL94 V0 |
| Insulator base | Thermoplastic |
| Insulator base temperature rating | -40°C to 125°C (UL RTI) |
| Connector | aluminum, tin plated |
| Terminal set screws | aluminum, tin plated |
| Threaded stud | brass, tin plated |
| Hex nut | brass, nickel plated |
| Connector mounting screws | steel, zinc plated |
| Aluminum wire range | 500kcmil - #4 AWG |
| Wire strip length | 1 5/16 in. (33mm) |
| Terminal screw drive | 3/8 in. hex |
| Hex nut provided | 9/16 across flats. |
| Mounting (Panel) | For use with 1/4 fastener. |
| Covers | Snap on cover abailable upon request |
| Catalog number | Cover is black thermoplastic |
