ELCO

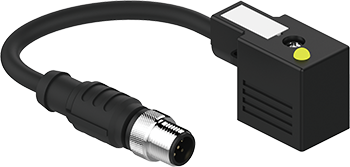

VBI21R-024-M12/3M-LV/P13/T2314 Double-Ended Valve Connector
$32.31
- Connector
- Type BI, 11 mm
- Coding
- 2 + PE
- Cable length
- 3.00 m
- Supply voltage
- 24 V DC
Product information
Technical details
Pre-wired Valve Connector Type BI (11mm), 2 Conductors + Ground - M12 Male straight, 3-pole LED and Suppression 24VDC PUR black 3x0.5mm², 3m 5mio. bending cycles
Specifications
MPN VBI21R-024-M12/3M-LV/P13/T2314
| Head design 1 | Type BI, 11 mm |
|---|---|
| Head design 2 | M12, plug, 3-pin, straight |
| Coding | 2 + PE |
| Use case | Valve |
| Cable type | PUR |
| Cable cross-section | 0.50 mm² |
| Cable length [m] | 3.00 |
| Wiring | LED, Z-diode |
| Coat colour | black |
| Shielding | unshielded |
| Operating voltage | 24 V DC |
| Ambient temperature | -40 ... +80 °C |
| Protection class | IP67 |
| Certificates | CE, UL, RoHS |
