ELCO

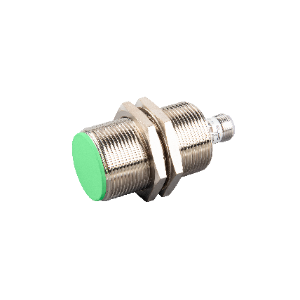

RF30-WR-MF30H/LK High frequency RFID
$444.98
- Communication protocol
- IO-Link
- IP rating
- IP67
Product information
Technical details
RFID readers, RF30-Series, High frequency, 13.56 MHz, ISO 15693, IO-Link, COM3 (230.4 kBaud), IP67, Ø30 × 46 mm, Nickel-plated brass + PBT, -25...+70 °C, M12 x 1-Male, Flush, Operating distance 0...60 mm
Specifications
MPN RF30-WR-MF30H/LK
| Installation | Metal-free (clear zone) , On metal , Flush in metal |
|---|---|
| IP rating | IP67 |
| Hardware version | V1.1 |
| Ambient temperature | -25 ... +70 °C |
| Storage temperature | -40 ... +85 °C |
| Communication protocol | IO-Link |
| Connection | M12x1-Male, 4-pin |
| Style Housing | M30 |
| Transmission rate | COM3 (230.4 kBaud) |
| Housing material | Nickel-plated brass + PBT |
| Process data | 32 bytes |
| Distance | 0 ... 60 mm |
| Frequency | 13.56 MHz |
| Supported data carrier types | ISO 15693 |
| Dimension | Ø30 × 46 mm |
