ELCO

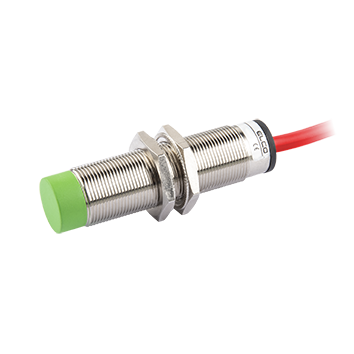

NI8-M18-ON6L/T120 Inductive Sensor
$103.18
- Cable length
- 2 m
- Sensing range
- 8 mm
- Output type
- NPN
- Supply voltage
- 10 ... 30 V DC
Product information
Technical details
Inductive Sensors, High temperature resistant type, Threaded cylindrical housing M18, Switching distance 8 mm, Non-flush, IP67, -25 ... 120 °C, 10 ... 30 V DC, NPN NO, 2 m cable
Specifications
MPN NI8-M18-ON6L/T120
| Connection | Cable |
|---|---|
| Cable type | Silicone |
| Sensing range | 8 mm |
| Sensing surface material | PBT |
| Housing material | Nickel-plated brass |
| Switching frequency | 500 Hz |
| Supply voltage | 10 ... 30 V DC |
| Ambient temperature | -25 … +120 ℃ |
| Load current | ≤ 100 mA |
| Output status | NO |
| External dimensions | M18 x 1 |
| Output type | NPN |
| Mounting | Non-flush |
| Product size | M18 x 60 mm |
| Cable length | 2 m |
| IP rating | IP67 |
