ELCO

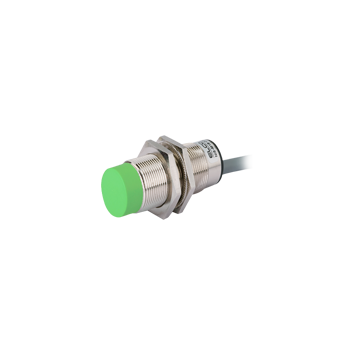

NI8-M18-LIU Inductive Sensor
$82.53
- Cable length
- 2 m
- Sensing range
- 8 mm
- Output type
- Current + Voltage
- Supply voltage
- 10 ... 30 V DC
Product information
Technical details
Inductive Sensors, Analog output type, Threaded cylindrical housing M18, Switching distance 1.6 ... 8 mm, Non-flush, IP67, -25 ... 70 °C, 0 ... 20 mA & 0 ... 10 V DC, 2 m cable
Specifications
MPN NI8-M18-LIU
| Cable type | PVC |
|---|---|
| Connection | Cable |
| Supply voltage | 10 ... 30 V DC |
| Housing material | Nickel-plated brass |
| Sensing surface material | PBT |
| Switching frequency | 500 Hz |
| Ambient temperature | -25 … +70 ℃ |
| Cable length | 2 m |
| IP rating | IP67 |
| Sensing range | 8 mm |
| Output type | Current + Voltage |
| External dimensions | M18 x 1 |
| Mounting | Non-flush |
| Product size | M18 x 70 mm |
