ELCO

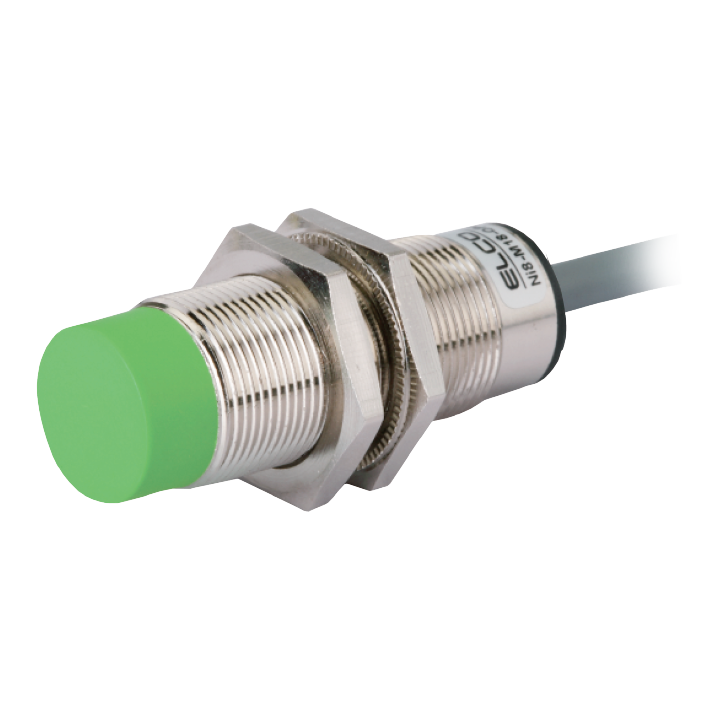

NI8-M18-CSA3L Inductive Sensor
$39.22
- Supply voltage
- 20 ... 250 V AC
- IP rating
- IP67
Product information
Technical details
Inductive Sensor, Threaded cylindrical housing M18, Switching distance 8mm, non-flush, IP67, -25...70°C, 2-wire AC NC, Cable 2m
Specifications
MPN NI8-M18-CSA3L
| Series | M Series |
|---|---|
| Design | Thread design M18 |
| Switching distance | 8 mm |
| Installation type | not flush |
| Output | Two-wire normally closed contact |
| Switching frequency | 40 Hz |
| Connection type | PVC cable 2 m |
| Operating voltage | 20 ... 250 V AC |
| Dimensions | M18 x 70 mm |
| Housing material | Nickel-plated brass |
| Ambient temperature | -25 ... +70 °C |
| Protection class | IP67 |
| Certificates | CE, RoHS, REACH |
