ELCO

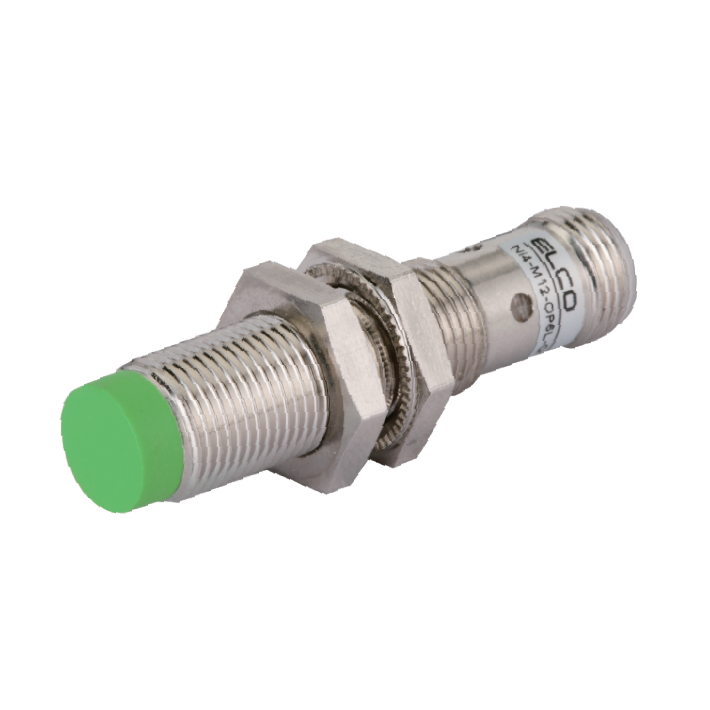

NI8-M12-CD6L-Q12 Inductive Sensor
$24.61
- Supply voltage
- 10 ... 30 V DC
- IP rating
- IP67
Product information
Technical details
Inductive Sensor, Threaded cylindrical housing M12, Switching distance 8mm, non-flush, IP67, -25...70°C, 2-wire DC, M12 connector
Specifications
MPN NI8-M12-CD6L-Q12
| Series | M Series |
|---|---|
| Design | Thread design M12 |
| Switching distance | 8 mm |
| Installation type | not flush |
| Output | Two-wire normally closed contact |
| Switching frequency | 500 Hz |
| Connection type | M12 plug, 2-pin |
| Operating voltage | 10 ... 30 V DC |
| Dimensions | M12 x 56 mm |
| Housing material | Nickel-plated brass |
| Ambient temperature | -25 ... +70 °C |
| Protection class | IP67 |
| Certificates | CE, RoHS, REACH |
