ELCO

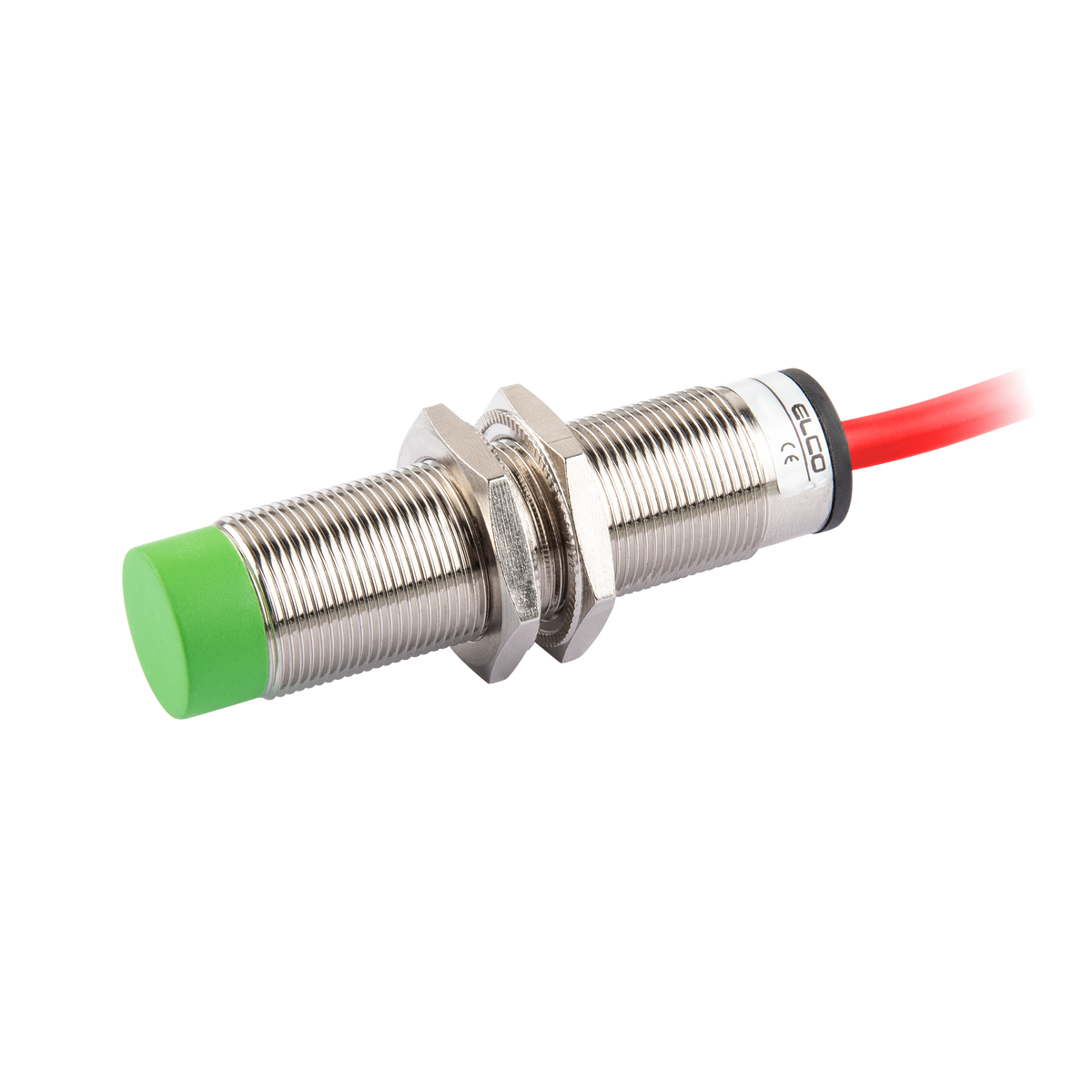

NI8-KM18-BN6L/T120 Inductive Sensor
$109.79
- Supply voltage
- 10 ... 30 V DC
- IP rating
- IP67
Product information
Technical details
Inductive Sensor, Threaded cylindrical stainless steel housing M18, Switching distance 8mm, non-flush, IP67, -25...120°C, NPN NO + NC, Cable 2m
Specifications
MPN NI8-KM18-BN6L/T120
| Series | T120 series |
|---|---|
| Feature | High temperature resistant (up to +120 °C) |
| Design | Thread design M18 |
| Switching distance | 8 mm |
| Installation type | not flush |
| Output | NPN normally closed contact and normally open contact |
| Switching frequency | 500 Hz |
| Connection type | PTFE cable 2 m |
| Operating voltage | 10 ... 30 V DC |
| Dimensions | M18 x 52 mm |
| Housing material | Stainless steel |
| Ambient temperature | -25 ... +120 °C |
| Protection class | IP67 |
| Certificates | CE, RoHS, REACH |
