ELCO

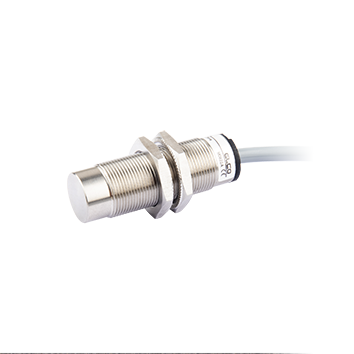

NI8-AM18-CSA3L Inductive Sensor
$86.39
- Cable length
- 2 m
- Sensing range
- 8 mm
- Output type
- AC
- Supply voltage
- 20 ... 250 V AC
Product information
Technical details
Inductive Sensors, All metal packaging, Stainless steel cylindrical housing M18, Switching distance 8 mm, Non-flush, IP67, -25 ... 70 °C, 20 ... 250 V AC, 2 - wire AC, NC, 2 m cable
Specifications
MPN NI8-AM18-CSA3L
| Cable type | PVC |
|---|---|
| Ambient temperature | -25 … +70 ℃ |
| Connection | Cable |
| Sensing range | 8 mm |
| Housing material | Stainless steel |
| Sensing surface material | Stainless steel |
| Switching frequency | 40 Hz |
| Supply voltage | 20 ... 250 V AC |
| Load current | ≤ 200 mA |
| Output status | NC |
| Mounting | Non-flush |
| Output type | AC |
| External dimensions | M18 x 1 |
| Product size | M18 x 55 mm |
| Cable length | 2 m |
| IP rating | IP67 |
