ELCO

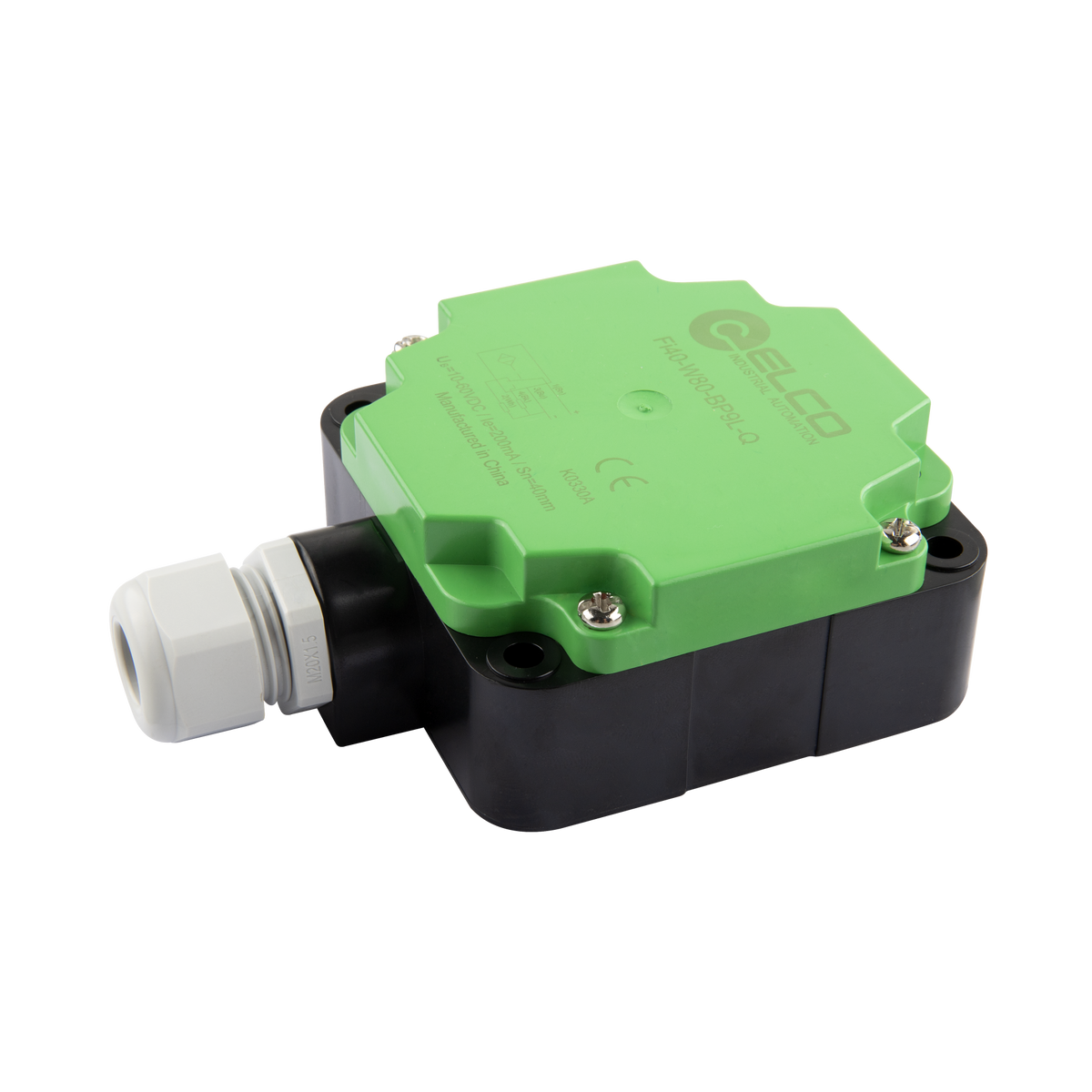

NI70-W80-CA41L-Q/TB40 Inductive Sensor
$265.65
- Supply voltage
- 20 ... 250 V AC/DC
- IP rating
- IP67
Product information
Technical details
Inductive Sensor, Rectangular housing W80, Switching distance 70mm, non-flush, IP67, -40...70°C, 20-250VAC/DC, 2-wire AC/DC, Screw terminal
Specifications
MPN NI70-W80-CA41L-Q/TB40
| Series | TB40 Series |
|---|---|
| Feature | Low temperature resistant (down to -40 °C) |
| Design | Cuboid design W80 |
| Switching distance | 70 mm |
| Installation type | not flush |
| Output | Two-wire normally closed contact |
| Switching frequency | 20 Hz |
| Connection type | Terminals incl. cable gland |
| Operating voltage | 20 ... 250 V AC/DC |
| Dimensions | 80 x 80 x 40 mm |
| Housing material | Plastic (PBT) |
| Ambient temperature | -40 ... +70 °C |
| Protection class | IP67 |
| Certificates | CE, RoHS, REACH |
