ELCO

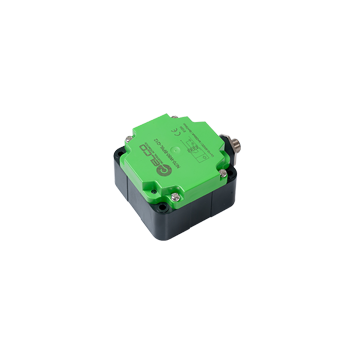

NI50-W80-BN6L-Q12/TB40 Inductive Sensor
$227.22
- Sensing range
- 50 mm
- Output type
- NPN
- Supply voltage
- 10 ... 30 V DC
- IP rating
- IP67
Product information
Technical details
Inductive Sensors, Low temperature resistant type, Rectangular housing W80, Switching distance 50 mm, Non-flush, IP67, -40 ... 70 °C, 10 ... 30 V DC, NPN NO + NC,M12 connecter
Specifications
MPN NI50-W80-BN6L-Q12/TB40
| Housing material | PA |
|---|---|
| Sensing range | 50 mm |
| Connection | M12, 4-pin |
| Product size | 80 x 80 x 40 mm |
| IP rating | IP67 |
| Ambient temperature | -40 … +70 ℃ |
| Output type | NPN |
| Sensing surface material | PA |
| External dimensions | Square |
| Switching frequency | 30 Hz |
| Supply voltage | 10 ... 30 V DC |
| Output status | NO + NC |
| Load current | ≤ 200 mA |
| Mounting | Non-flush |
