ELCO

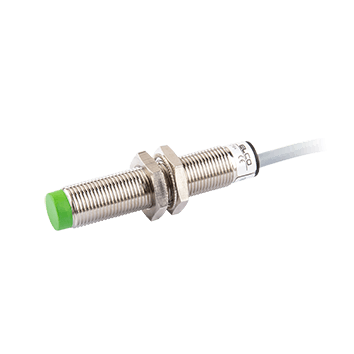

NI5-M12E-OP6L Inductive Sensor
$37.13
- Cable length
- 2 m
- Sensing range
- 5 mm
- Output type
- PNP
- Supply voltage
- 10 ... 30 V DC
Product information
Technical details
Inductive Sensors, M-series cylindrical type, Threaded cylindrical long housing M12, Switching distance 5 mm, Non-flush, IP67, -25 ... 70 °C, 10 ... 30 V DC, PNP NO, 2 m Cable
Specifications
MPN NI5-M12E-OP6L
| Connection | Cable |
|---|---|
| Output status | NO |
| Ambient temperature | -25 … +70 ℃ |
| IP rating | IP67 |
| Output type | PNP |
| Sensing range | 5 mm |
| Load current | ≤ 200 mA |
| Product size | M12 x 60.2 mm |
| Cable type | PVC |
| Housing material | Nickel-plated brass |
| Sensing surface material | PBT |
| Supply voltage | 10 ... 30 V DC |
| Switching frequency | 800 Hz |
| External dimensions | M12 x 1 |
| Mounting | Non-flush |
| Cable length | 2 m |
