ELCO

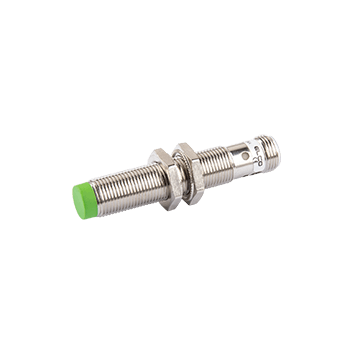

NI5-M12E-CA41L-Q12 Inductive Sensor
$45.22
- Sensing range
- 5 mm
- Output type
- DC / AC
- Supply voltage
- 20 ... 250 V AC/DC
- IP rating
- IP67
Product information
Technical details
Inductive Sensors, M-series cylindrical type, Threaded cylindrical long housing M12, Switching distance 5 mm, Non-flush, IP67, -25 ... 70 °C, 20 ... 250 V AC/DC, AC/DC NC, M12 connector
Specifications
MPN NI5-M12E-CA41L-Q12
| Supply voltage | 20 ... 250 V AC/DC |
|---|---|
| Sensing range | 5 mm |
| Housing material | Nickel-plated brass |
| Connection | M12, 4-pin |
| Output status | NC |
| Load current | DC ≤ 100 mA / AC ≤ 200 mA |
| Sensing surface material | PBT |
| IP rating | IP67 |
| Switching frequency | 40 Hz |
| Ambient temperature | -25 … +70 ℃ |
| Output type | DC / AC |
| External dimensions | M12 x 1 |
| Mounting | Non-flush |
| Product size | M12 x 62 mm |
