ELCO

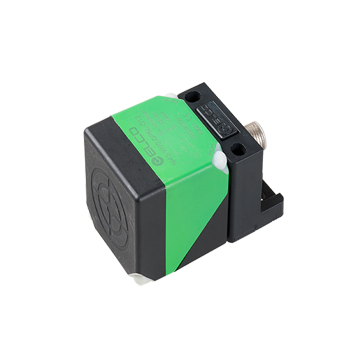

NI40-W40-OD9L-Q12 Inductive Sensor
$63.18
- Sensing range
- 40 mm
- Output type
- DC
- Supply voltage
- 10 ... 60 V DC
- IP rating
- IP67
Product information
Technical details
Inductive Sensors, Square Series, Rectangular housing W40, Switching distance 40 mm, Non-flush, IP67, -25 ... 70 °C, 10 ... 60 V DC, 2-wires 10-60 V DC NO, M12 connector
Specifications
MPN NI40-W40-OD9L-Q12
| Ambient temperature | -25 … +70 ℃ |
|---|---|
| Connection | M12, 4-pin |
| Output type | DC |
| Sensing range | 40 mm |
| Housing material | PA |
| Output status | NO |
| Sensing surface material | PA |
| Switching frequency | 50 Hz |
| Supply voltage | 10 ... 60 V DC |
| Load current | ≤ 100 mA |
| External dimensions | Square |
| Mounting | Non-flush |
| Product size | 66 x 40 x 40 mm |
| IP rating | IP67 |
