ELCO

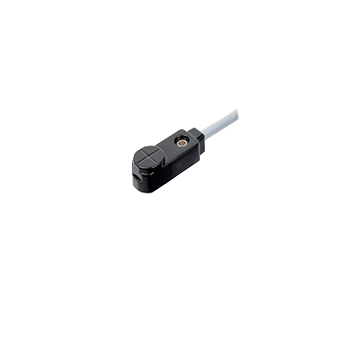

NI4-Q12-CN6L Inductive Sensor
$43.96
- Cable length
- 2 m
- Sensing range
- 4 mm
- Output type
- NPN
- Supply voltage
- 10 ... 30 V DC
Product information
Technical details
Inductive Sensors, Square Series, Rectangular housing Q12, Switching distance 4 mm, Non-flush, IP67, -25 ... 70 °C, 10 ... 30 V DC, NPN NC, 2 m cable
Specifications
MPN NI4-Q12-CN6L
| Cable type | PVC |
|---|---|
| Connection | Cable |
| Supply voltage | 10 ... 30 V DC |
| IP rating | IP67 |
| Output status | NC |
| Sensing range | 4 mm |
| Housing material | ABS |
| Sensing surface material | ABS |
| Switching frequency | 500 Hz |
| Ambient temperature | -25 … +70 ℃ |
| Load current | ≤ 200 mA |
| Output type | NPN |
| External dimensions | Square |
| Mounting | Non-flush |
| Product size | 27.8 x 12 x 7.1 mm |
| Cable length | 2 m |
