ELCO

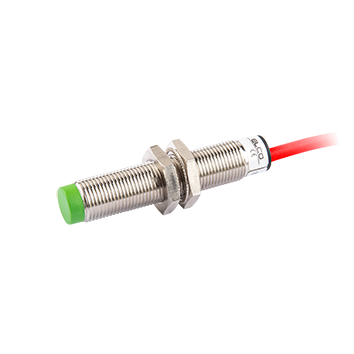

NI4-M12-ON6L/T120 Inductive Sensor
$83.39
- Cable length
- 2 m
- Sensing range
- 4 mm
- Output type
- NPN
- Supply voltage
- 10 ... 30 V DC
Product information
Technical details
Inductive Sensors, High temperature resistant type, Threaded cylindrical housing M12, Switching distance 4 mm, Non-flush, IP67, -25 ... 120 °C, 10 ... 30 V DC, NPN NO, 2 m cable
Specifications
MPN NI4-M12-ON6L/T120
| Connection | Cable |
|---|---|
| Cable type | Silicone |
| Supply voltage | 10 ... 30 V DC |
| Sensing range | 4 mm |
| Housing material | Nickel-plated brass |
| Sensing surface material | PBT |
| Switching frequency | 800 Hz |
| Ambient temperature | -25 … +120 ℃ |
| Output status | NO |
| Load current | ≤ 100 mA |
| External dimensions | M12 x 1 |
| Output type | NPN |
| Mounting | Non-flush |
| Product size | M12 x 51.2 mm |
| Cable length | 2 m |
| IP rating | IP67 |
