ELCO

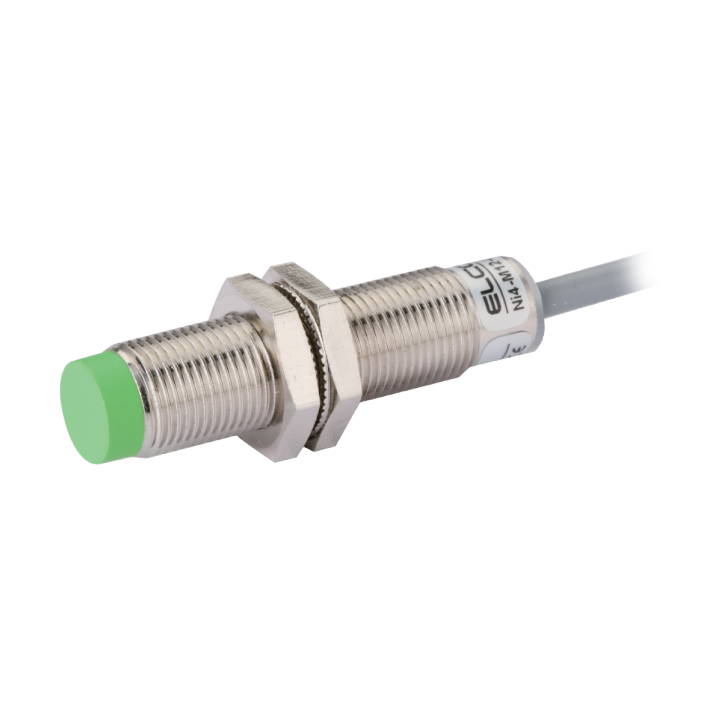

NI4-M12-ON6L Inductive Sensor
$27.27
- Supply voltage
- 10 ... 30 V DC
- IP rating
- IP67
Product information
Technical details
Inductive Sensor, Threaded cylindrical housing M12, Switching distance 4mm, non-flush, IP67, -25...70°C, NPN NO, Cable 2m
Specifications
MPN NI4-M12-ON6L
| Series | M Series |
|---|---|
| Design | Thread design M12 |
| Switching distance | 4 mm |
| Installation type | not flush |
| Output | NPN NO contact |
| Switching frequency | 800 Hz |
| Connection type | PVC cable 2 m |
| Operating voltage | 10 ... 30 V DC |
| Dimensions | M12 x 51.2 mm |
| Housing material | Nickel-plated brass |
| Ambient temperature | -25 ... +70 °C |
| Protection class | IP67 |
| Certificates | CE, RoHS, REACH |
