ELCO

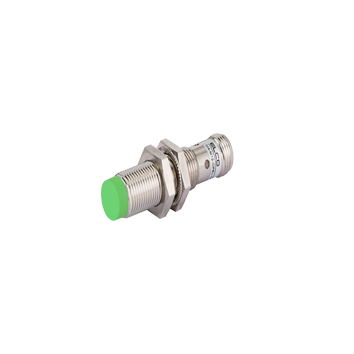

NI4-M12-LIU-Q12 Inductive Sensor
$71.22
- Sensing range
- 4 mm
- Output type
- Current + Voltage
- Supply voltage
- 10 ... 30 V DC
- IP rating
- IP67
Product information
Technical details
Inductive Sensors, Analog output type, Threaded cylindrical housing M12, Switching distance 0.8 ... 4 mm, Non-flush, IP67, -25 ... 70 °C, 0 ... 20 mA & 0 ... 10 V DC, M12 connector
Specifications
MPN NI4-M12-LIU-Q12
| Ambient temperature | -25 … +70 ℃ |
|---|---|
| Connection | M12, 4-pin |
| Sensing range | 4 mm |
| Housing material | Nickel-plated brass |
| Sensing surface material | PBT |
| Switching frequency | 800 Hz |
| Supply voltage | 10 ... 30 V DC |
| Output type | Current + Voltage |
| External dimensions | M12 x 1 |
| Mounting | Non-flush |
| Product size | M12 x 68 mm |
| IP rating | IP67 |
