ELCO

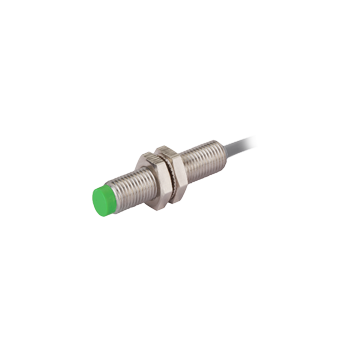

NI4-M08-ON6L/TB40 Inductive Sensor
$44.09
- Cable length
- 2 m
- Sensing range
- 4 mm
- Output type
- NPN
- Supply voltage
- 10 ... 30 V DC
Product information
Technical details
Inductive Sensors, Low temperature resistant type, Threaded cylindrical housing M8, Low temperature series, Switching distance 4 mm, Non-flush, IP67, -40 ... 70 °C, 10 ... 30 V DC, NPN NO, 2 m cable
Specifications
MPN NI4-M08-ON6L/TB40
| Sensing range | 4 mm |
|---|---|
| Cable type | PUR |
| Ambient temperature | -40 … +70 ℃ |
| Connection | Cable |
| Output status | NO |
| Sensing surface material | PBT |
| Switching frequency | 800 Hz |
| Cable length | 2 m |
| Housing material | Nickel-plated brass |
| Output type | NPN |
| Load current | ≤ 200 mA |
| Product size | M8 x 45.7 mm |
| IP rating | IP67 |
| Supply voltage | 10 ... 30 V DC |
| External dimensions | M8 x 1 |
| Mounting | Non-flush |
