ELCO

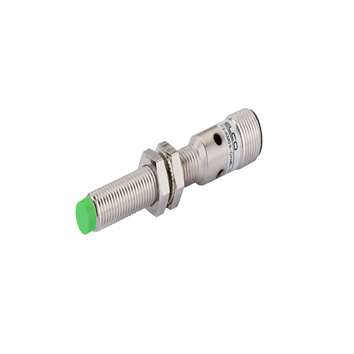

NI4-M08-CP6L-Q12/TB40 Inductive Sensor
$49.74
- Sensing range
- 4 mm
- Output type
- PNP
- Supply voltage
- 10 ... 30 V DC
- IP rating
- IP67
Product information
Technical details
Inductive Sensors, Low temperature resistant type, Threaded cylindrical housing M8, Low temperature series, Switching distance 4 mm, Non-flush, IP67, -40 ... 70 °C, 10 ... 30 V DC, PNP NC, M12 connector
Specifications
MPN NI4-M08-CP6L-Q12/TB40
| Mounting | Non-flush |
|---|---|
| IP rating | IP67 |
| Ambient temperature | -40 … +70 ℃ |
| Connection | M12, 4-pin |
| Sensing surface material | PBT |
| Housing material | Nickel-plated brass |
| Switching frequency | 800 Hz |
| Supply voltage | 10 ... 30 V DC |
| Load current | ≤ 200 mA |
| Output status | NC |
| Output type | PNP |
| External dimensions | M8 x 1 |
| Product size | M8 x 68 mm |
| Sensing range | 4 mm |
