ELCO

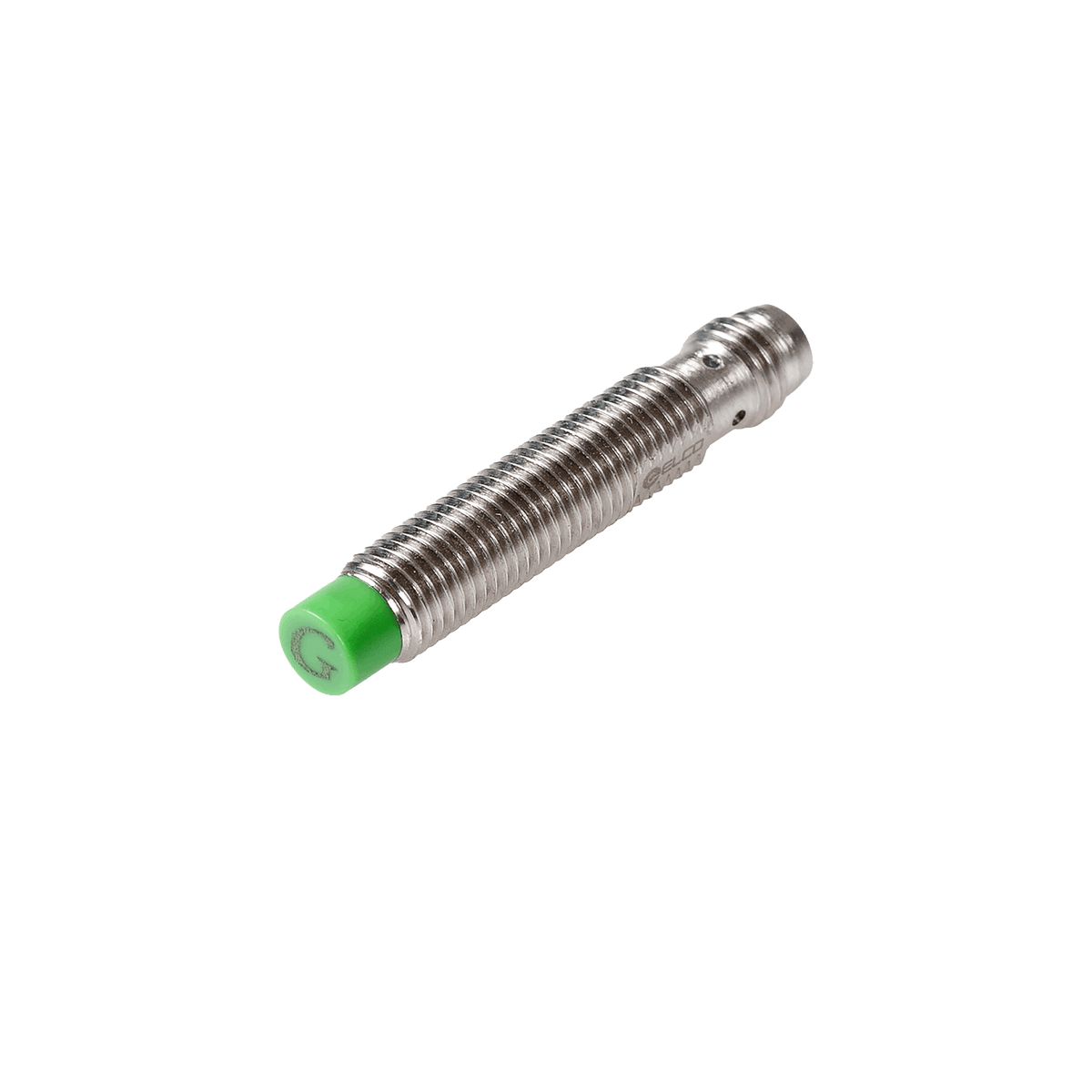

NI4-G08-ON6L-Q8 Inductive Sensor
$45.22
- Sensing range
- 4 mm
- Output type
- NPN
- Supply voltage
- 10 ... 30 V DC
- IP rating
- IP68
Product information
Technical details
Inductive Sensors, G-series high-performance type, Threaded cylindrical housing M8, Switching distance 4 mm, Non-flush, IP68, -30 ... 85 °C, 10 ... 30 V DC, NPN NO, M8 connector
Specifications
MPN NI4-G08-ON6L-Q8
| Housing material | Stainless steel |
|---|---|
| Connection | M8, 3-pin |
| Sensing surface material | PBT |
| IP rating | IP68 |
| Ambient temperature | -30 … +85 ℃ |
| Sensing range | 4 mm |
| Switching frequency | 750 Hz |
| Supply voltage | 10 ... 30 V DC |
| Load current | ≤ 200 mA |
| Output status | NO |
| Output type | NPN |
| External dimensions | M8 x 1 |
| Mounting | Non-flush |
| Product size | M8 x 45 mm |
