ELCO

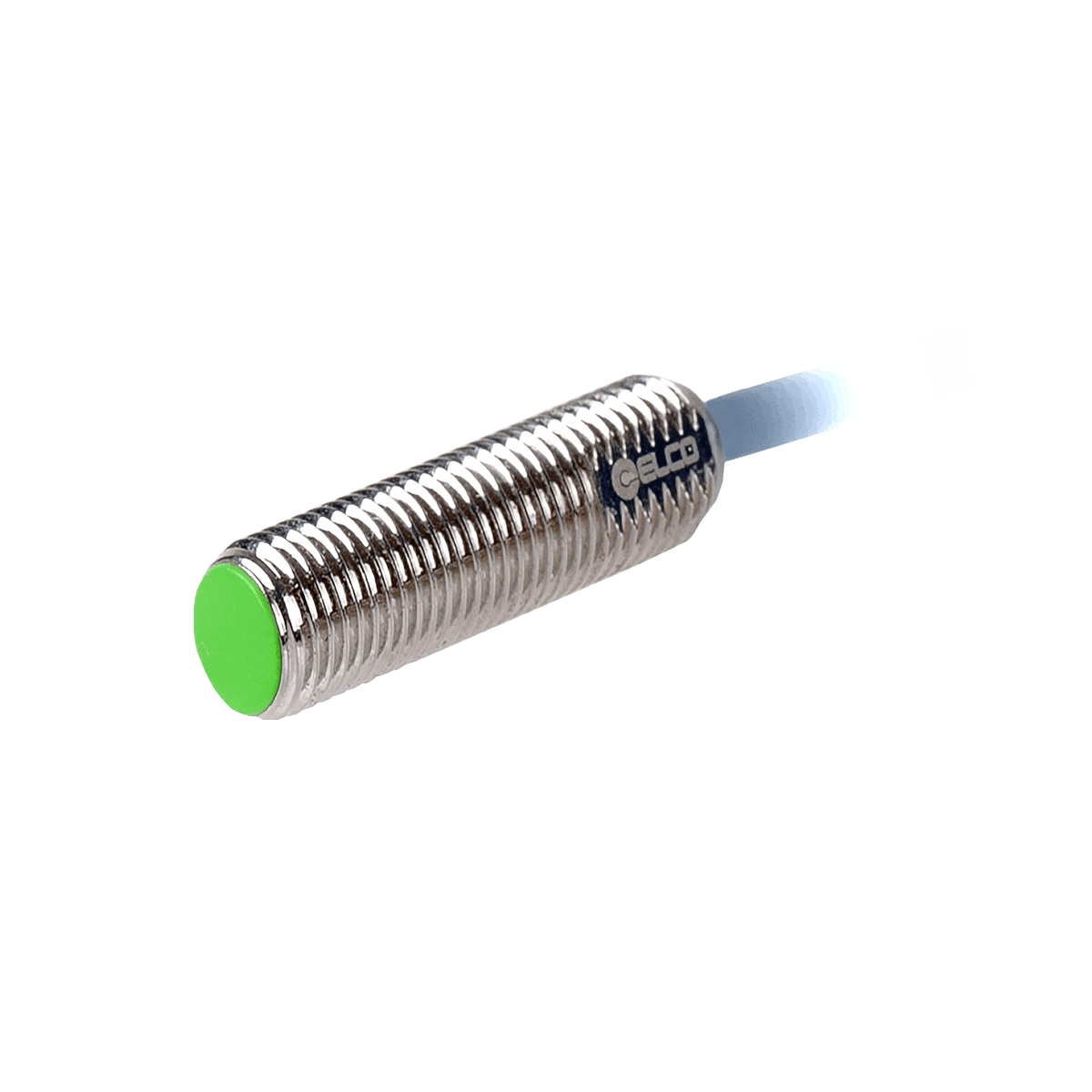

NI4-G08-CD6L Inductive Sensor
$44.09
- Cable length
- 2 m
- Sensing range
- 4 mm
- Output type
- DC
- Supply voltage
- 10 ... 30 V DC
Product information
Technical details
Inductive Sensors, G-series high-performance type, Threaded cylindrical housing M8, Switching distance 4 mm, Non-flush, IP68, -30 ... 85 °C, 10 ... 30 V DC, 2 - wire DC, NC, 2 m cable
Specifications
MPN NI4-G08-CD6L
| Mounting | Non-flush |
|---|---|
| Cable type | PVC |
| Supply voltage | 10 ... 30 V DC |
| Housing material | Nickel-plated brass |
| Connection | Cable |
| External dimensions | M8 x 1 |
| Product size | M8 x 35 mm |
| Sensing range | 4 mm |
| Switching frequency | 750 Hz |
| Sensing surface material | PBT |
| Load current | ≤ 100 mA |
| Output status | NC |
| Ambient temperature | -30 … +85 ℃ |
| Output type | DC |
| Cable length | 2 m |
| IP rating | IP68 |
