ELCO

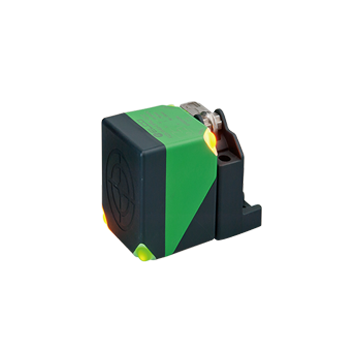

NI30-W40-CP6L-Q12/TB40 Inductive Sensor
$115.31
- Sensing range
- 30 mm
- Output type
- PNP
- Supply voltage
- 10 ... 30 V DC
- IP rating
- IP67
Product information
Technical details
Inductive Sensors, Low temperature resistant type, Rectangular housing W40, Switching distance 30 mm, Non-flush, IP67, -40 ... 70 °C, 10 ... 30 V DC, DC NC PNP, 10 ... 30 V DC, M12 connector
Specifications
MPN NI30-W40-CP6L-Q12/TB40
| Mounting | Non-flush |
|---|---|
| Switching frequency | 100 Hz |
| Connection | M12, 4-pin |
| Ambient temperature | -40 … +70 ℃ |
| Housing material | PA |
| External dimensions | Square |
| IP rating | IP67 |
| Product size | 66 x 40 x 40 mm |
| Sensing surface material | PA |
| Load current | ≤ 200 mA |
| Sensing range | 30 mm |
| Supply voltage | 10 ... 30 V DC |
| Output status | NC |
| Output type | PNP |
