ELCO

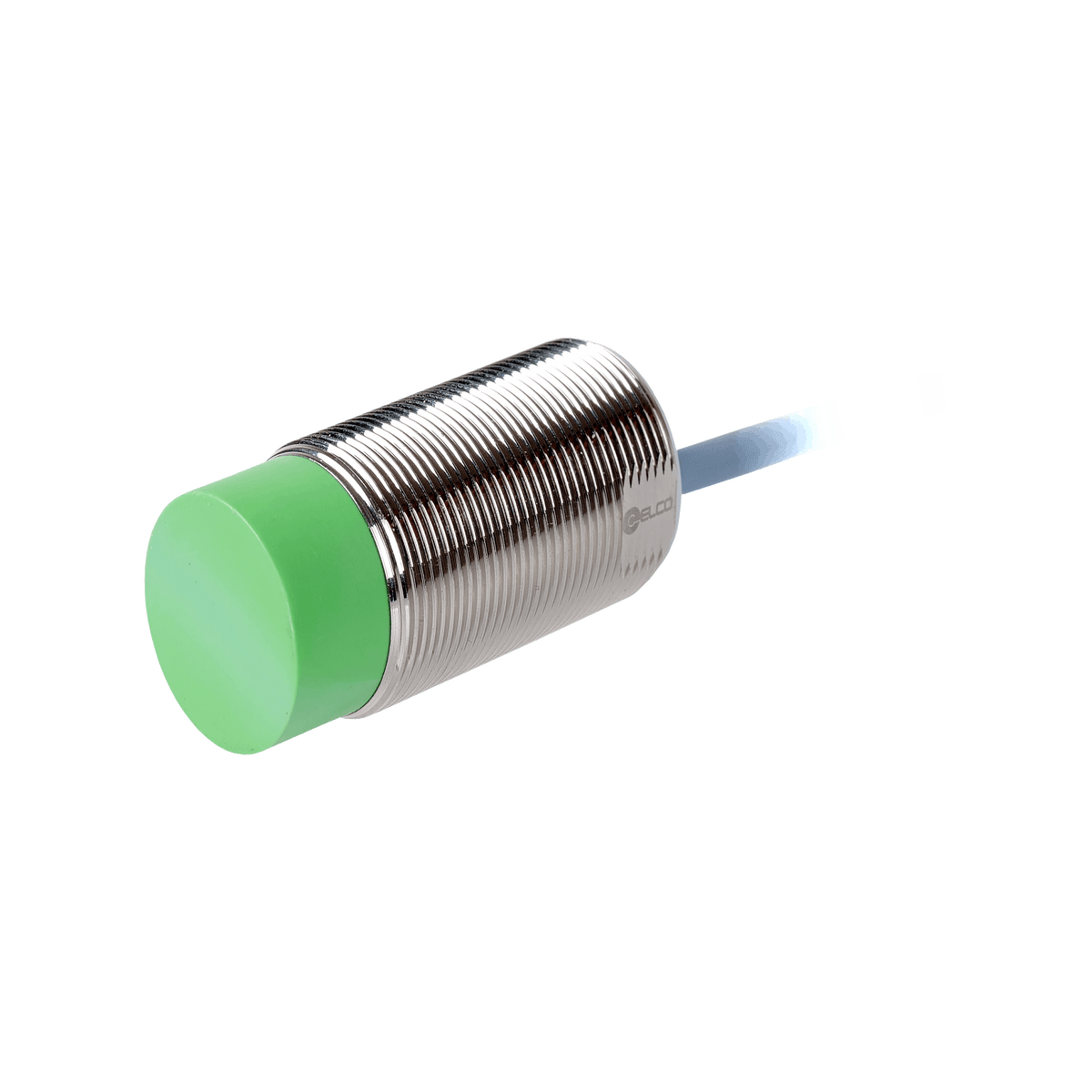

NI30-G30-CP6L Inductive Sensor
$83.66
- Cable length
- 2 m
- Sensing range
- 30 mm
- Output type
- PNP
- Supply voltage
- 10 ... 30 V DC
Product information
Technical details
Inductive Sensors, G-series high-performance type, Threaded cylindrical housing M30, Switching distance 30 mm, Non-flush, IP68, -30 ... 85 °C, 10 ... 30 V DC, PNP NC, 2 m cable
Specifications
MPN NI30-G30-CP6L
| Cable type | PVC |
|---|---|
| IP rating | IP68 |
| Switching frequency | 75 Hz |
| Connection | Cable |
| Mounting | Non-flush |
| Output type | PNP |
| Cable length | 2 m |
| Housing material | Nickel-plated brass |
| Sensing range | 30 mm |
| Sensing surface material | PBT |
| Supply voltage | 10 ... 30 V DC |
| Ambient temperature | -30 … +85 ℃ |
| Load current | ≤ 200 mA |
| Output status | NC |
| External dimensions | M30 x 1.5 |
| Product size | M30 x 69 mm |
