ELCO

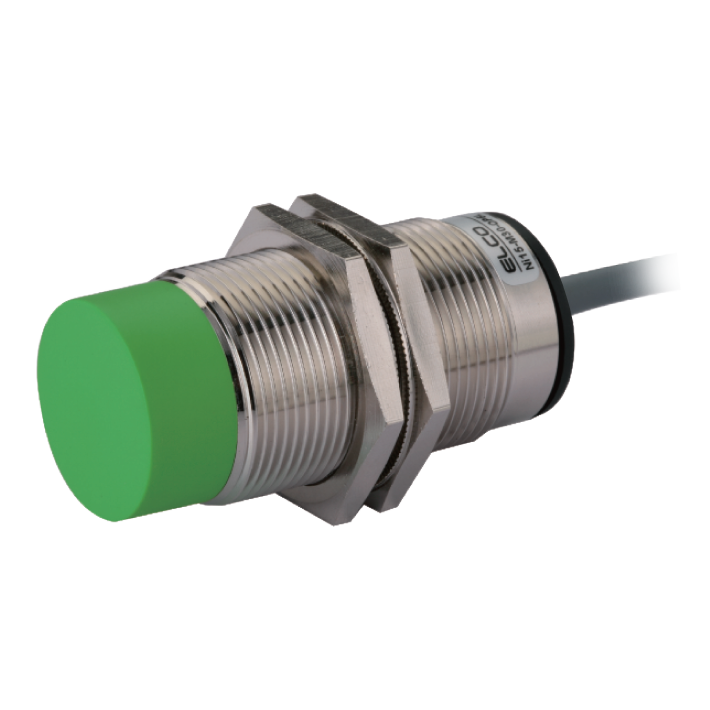

NI22A-M30-OP6L Inductive Sensor
$110.79
- Supply voltage
- 10 ... 30 V DC
- IP rating
- IP67
Product information
Technical details
Inductive sensor, Threaded cylindrical housing M30, Magnetic field immune, Switching distance 22mm, non-flush, IP67, -25...70°C, PNP NO, Cable 2m
Specifications
MPN NI22A-M30-OP6L
| Series | A Series |
|---|---|
| Feature | Magnetic field resistant |
| Design | Thread design M30 |
| Switching distance | 22 mm |
| Installation type | not flush |
| Output | PNP NO contact |
| Switching frequency | 200 Hz |
| Connection type | PVC cable 2 m |
| Operating voltage | 10 ... 30 V DC |
| Dimensions | M30 x 55 mm |
| Housing material | Nickel-plated brass |
| Ambient temperature | -25 ... +70 °C |
| Protection class | IP67 |
| Certificates | CE, RoHS, REACH |
