ELCO

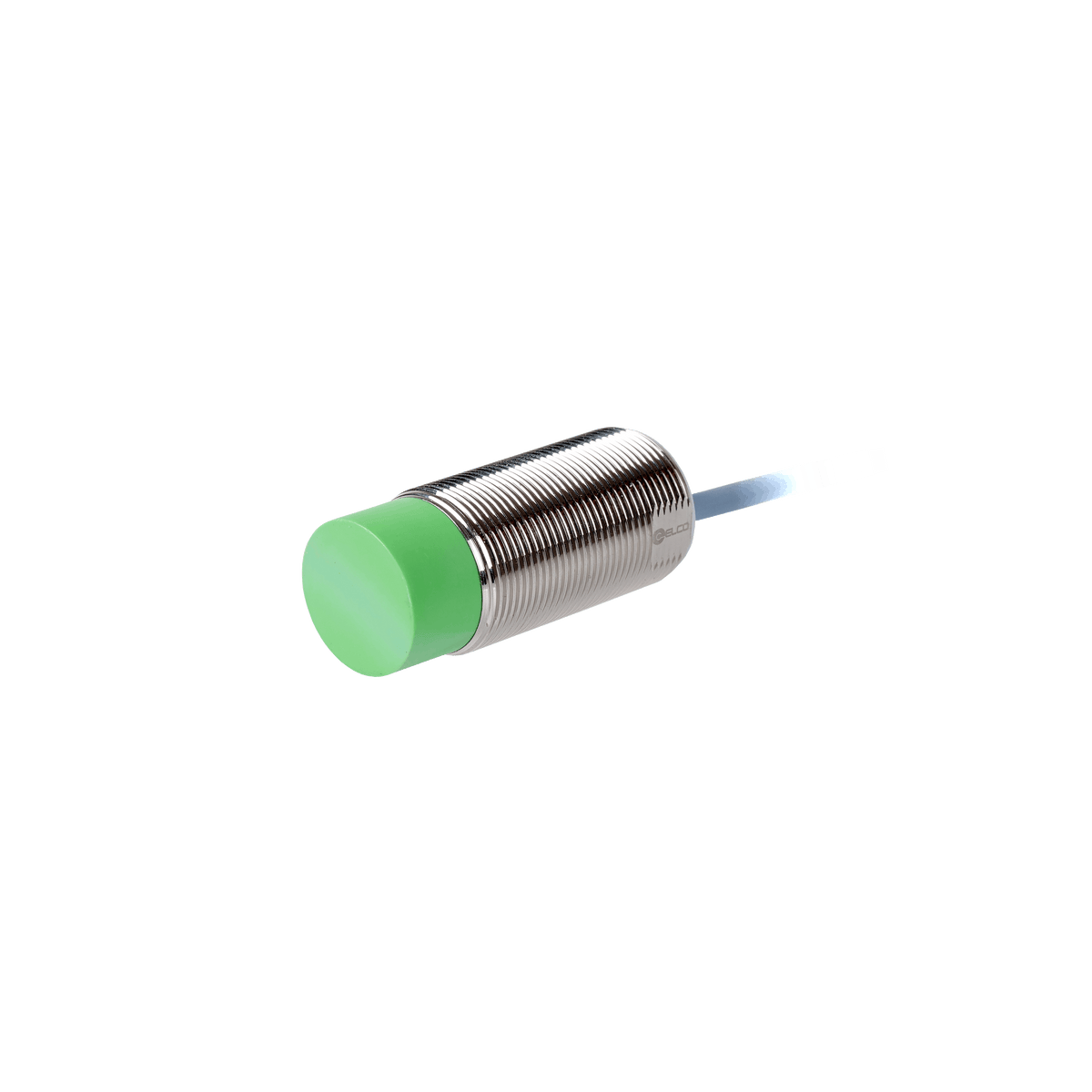

NI22-ZG30-OP6L Inductive Sensor
$122.09
- Cable length
- 2 m
- Sensing range
- 4 mm
- Output type
- PNP
- Supply voltage
- 10 ... 30 V DC
Product information
Technical details
Inductive Sensors, ZG-series high protection performance type, Threaded cylindrical stainless steel housing M30, Switching distance 22 mm, Non-flush, IP68, -40 ... 85 °C, 10 ... 30 V DC, PNP NO, Cable PUR 2 m
Specifications
MPN NI22-ZG30-OP6L
| Sensing range | 4 mm |
|---|---|
| Cable type | PVC |
| Connection | Cable |
| Housing material | Stainless steel |
| Sensing surface material | PBT |
| Switching frequency | 200 Hz |
| Supply voltage | 10 ... 30 V DC |
| Ambient temperature | -40 … +85 ℃ |
| Output status | NO |
| Load current | ≤ 200 mA |
| External dimensions | M30 x 1.5 |
| Mounting | Non-flush |
| Output type | PNP |
| Product size | M30 x 69 mm |
| Cable length | 2 m |
| IP rating | IP68 |
