ELCO

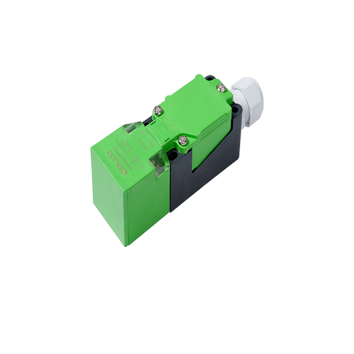

NI20-WL40-VA41L-Q Inductive Sensor
$121.13
- Sensing range
- 20 mm
- Output type
- DC / AC
- Supply voltage
- 20 ... 250 V AC/DC
- IP rating
- IP67
Product information
Technical details
Inductive Sensors, Square Series, Rectangular housing WL40, Switching distance 20 mm, Non-flush, 20 ... 250 V AC/ V DC, IP67, -25 ... 70 °C, 20 ... 250 V AC/DC, NO + NC, Screw terminals
Specifications
MPN NI20-WL40-VA41L-Q
| Sensing range | 20 mm |
|---|---|
| External dimensions | Square |
| Mounting | Non-flush |
| Product size | 115 x 40 x 40 mm |
| Connection | Terminal |
| Switching frequency | 20 Hz |
| Ambient temperature | -25 … +70 ℃ |
| Housing material | PA |
| Output status | NO + NC |
| Sensing surface material | PA |
| Supply voltage | 20 ... 250 V AC/DC |
| Load current | DC ≤ 100 mA / AC ≤ 200 mA |
| Output type | DC / AC |
| IP rating | IP67 |
