ELCO

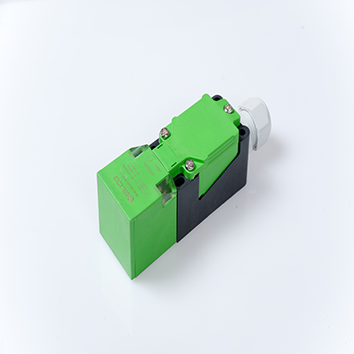

NI20-WL40-OD9L-Q/TB40 Inductive Sensor
$157.13
- Sensing range
- 30 mm
- Output type
- DC
- Supply voltage
- 10 ... 60 V DC
- IP rating
- IP67
Product information
Technical details
Inductive Sensors, Low temperature resistant type, Low temperature resistant type, Rectangular housing WL40, Switching distance 20 mm, Non-flush, IP67, -40 ... 70 °C, 10 ... 60 V DC, 2 - wire DC, NO, Screw terminals
Specifications
MPN NI20-WL40-OD9L-Q/TB40
| IP rating | IP67 |
|---|---|
| Switching frequency | 150 Hz |
| Housing material | PA |
| Connection | Terminal |
| Load current | ≤ 100 mA |
| Output type | DC |
| Sensing range | 30 mm |
| Product size | 115 x 40 x 40 mm |
| Sensing surface material | PA |
| Supply voltage | 10 ... 60 V DC |
| Ambient temperature | -40 … +70 ℃ |
| Output status | NO |
| External dimensions | Square |
| Mounting | Non-flush |
