ELCO

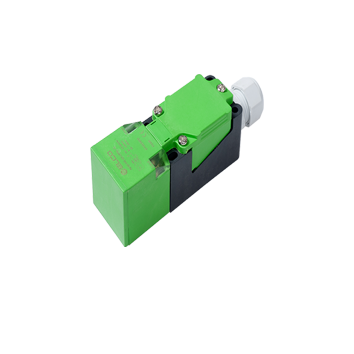

NI20-WL40-BN6L-Q Inductive Sensor
$108.22
- Sensing range
- 20 mm
- Output type
- NPN
- Supply voltage
- 10 ... 30 V DC
- IP rating
- IP67
Product information
Technical details
Inductive Sensors, Square Series, Rectangular housing WL40, Switching distance 20 mm, Non-flush, IP67, -25 ... 70 °C, 10 ... 30 V DC, NPN NO + NC, Screw terminals
Specifications
MPN NI20-WL40-BN6L-Q
| Sensing range | 20 mm |
|---|---|
| Mounting | Non-flush |
| Connection | Terminal |
| Output status | NO + NC |
| Housing material | PA |
| Sensing surface material | PA |
| Supply voltage | 10 ... 30 V DC |
| Switching frequency | 50 Hz |
| Load current | ≤ 200 mA |
| Ambient temperature | -25 … +70 ℃ |
| External dimensions | Square |
| Output type | NPN |
| Product size | 115 x 40 x 40 mm |
| IP rating | IP67 |
