ELCO

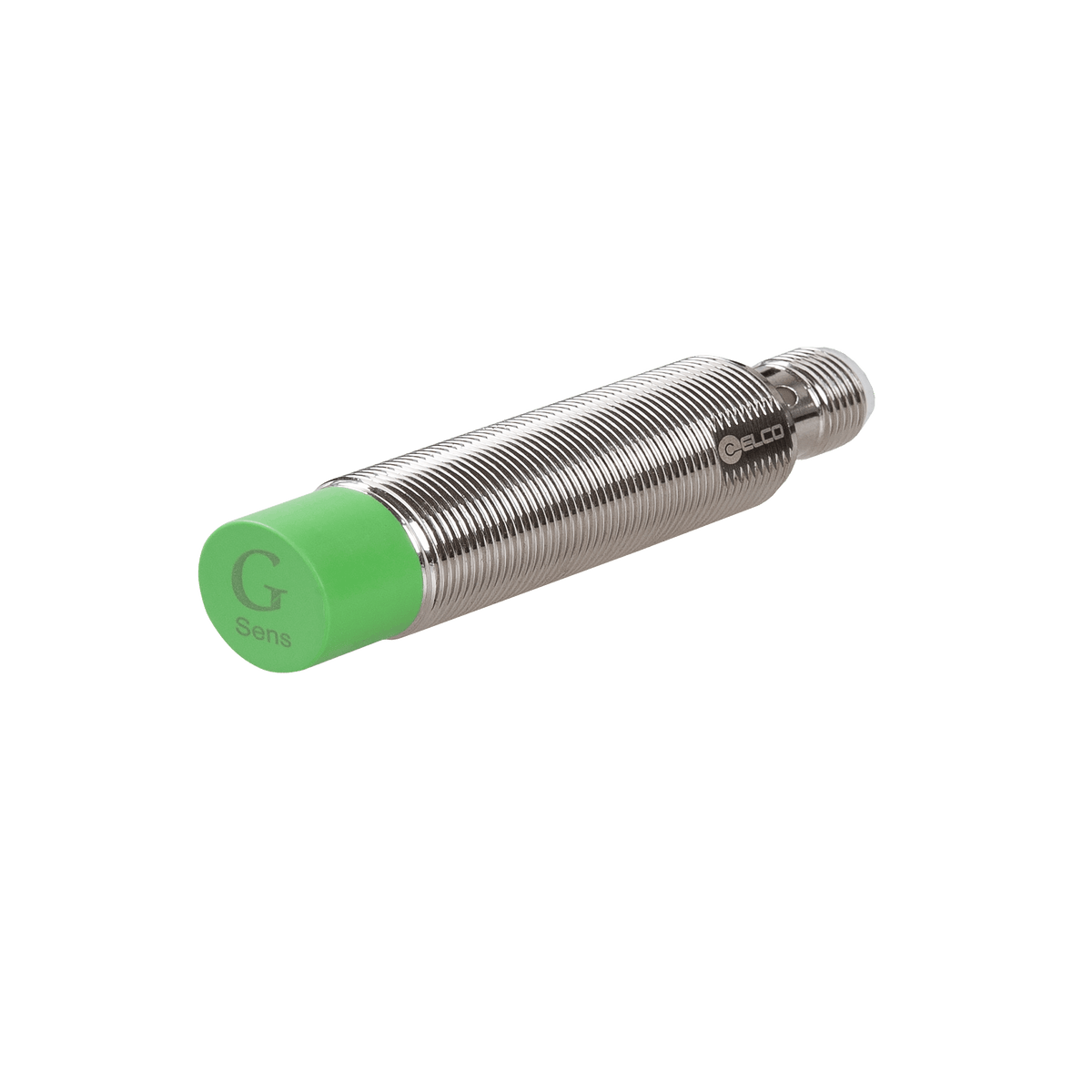

NI20-G18-CP6L-Q12 Inductive Sensor
$80.83
- Sensing range
- 20 mm
- Output type
- PNP
- Supply voltage
- 10 ... 30 V DC
- IP rating
- IP68
Product information
Technical details
Inductive Sensors, G-series high-performance type, Threaded cylindrical housing M18, Switching distance 20 mm, Non-flush, IP68, -25 ... 70 °C, 10 ... 30 V DC, PNP NC, M12 connector
Specifications
MPN NI20-G18-CP6L-Q12
| Connection | M12, 4-pin |
|---|---|
| Ambient temperature | -30 … +85 ℃ |
| IP rating | IP68 |
| Housing material | Nickel-plated brass |
| Sensing range | 20 mm |
| Sensing surface material | PBT |
| Switching frequency | 200 Hz |
| Supply voltage | 10 ... 30 V DC |
| Load current | ≤ 200 mA |
| Output status | NC |
| Output type | PNP |
| External dimensions | M18 x 1 |
| Mounting | Non-flush |
| Product size | M18 x 77 mm |
