ELCO

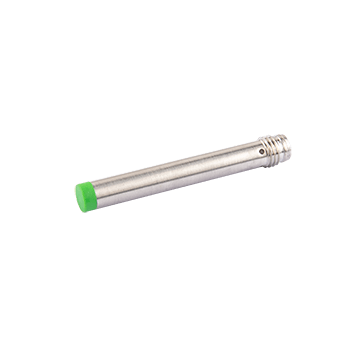

NI2-KH6.5E-CN6L-Q8 Inductive Sensor
$38.74
- Sensing range
- 2 mm
- Output type
- NPN
- Supply voltage
- 10 ... 30 V DC
- IP rating
- IP67
Product information
Technical details
Inductive Sensors, Small size type, Metal smooth cylindrical long stainless steel housing d = 6.5 mm, Switching distance 2 mm, Non-flush, IP67, -25 ... 70 °C, 10 ... 30 V DC, NPN NC, M8 connector
Specifications
MPN NI2-KH6.5E-CN6L-Q8
| Connection | M8, 3-pin |
|---|---|
| Ambient temperature | -25 … +70 ℃ |
| IP rating | IP67 |
| Sensing range | 2 mm |
| Housing material | Stainless steel |
| Sensing surface material | PBT |
| Switching frequency | 1000 Hz |
| Supply voltage | 10 ... 30 V DC |
| Load current | ≤ 200 mA |
| Output status | NC |
| Output type | NPN |
| External dimensions | Φ 6.5 |
| Mounting | Non-flush |
| Product size | Φ 6.5 x 63 mm |
