ELCO

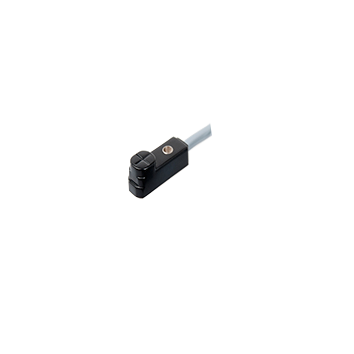

NI2.5-Q08-CD6L Inductive Sensor
$53.00
- Cable length
- 2 m
- Sensing range
- 2.5 mm
- Output type
- DC
- Supply voltage
- 10 ... 30 V DC
Product information
Technical details
Inductive Sensors, Square Series, Rectangular housing Q08, Switching distance 2.5 mm, Non-flush, IP67, -25 ... 70 °C, 10 ... 30 V DC, 2 - wire DC, NC, 2 m cable
Specifications
MPN NI2.5-Q08-CD6L
| Cable type | PVC |
|---|---|
| Output status | NC |
| Ambient temperature | -25 … +70 ℃ |
| Cable length | 2 m |
| External dimensions | Square |
| Sensing range | 2.5 mm |
| Connection | Cable |
| Housing material | ABS |
| Sensing surface material | ABS |
| Switching frequency | 800 Hz |
| Supply voltage | 10 ... 30 V DC |
| Load current | ≤ 100 mA |
| Output type | DC |
| Mounting | Non-flush |
| Product size | 23 x 8 x 7.4 mm |
| IP rating | IP67 |
