ELCO

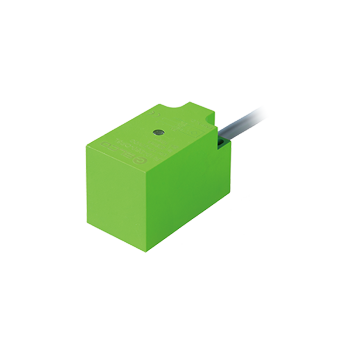

NI15-Q30-ON6L Inductive Sensor
$56.66
- Cable length
- 2 m
- Sensing range
- 15 mm
- Output type
- NPN
- Supply voltage
- 10 ... 30 V DC
Product information
Technical details
Inductive Sensors, Square Series, Rectangular housing Q30, Switching distance 15 mm, Non-flush, IP67, -25 ... 70 °C, 10 ... 30 V DC, NPN NO, 2 m cable
Specifications
MPN NI15-Q30-ON6L
| Cable type | PVC |
|---|---|
| Cable length | 2 m |
| IP rating | IP67 |
| Connection | Cable |
| Supply voltage | 10 ... 30 V DC |
| Output type | NPN |
| Sensing range | 15 mm |
| Housing material | ABS + PBT |
| Sensing surface material | ABS + PBT |
| Switching frequency | 500 Hz |
| Ambient temperature | -25 … +70 ℃ |
| Output status | NO |
| Load current | ≤ 200 mA |
| External dimensions | Square |
| Mounting | Non-flush |
| Product size | 38 x 25 x 25 mm |
