ELCO

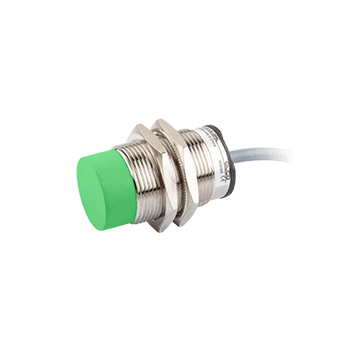

Ni15-M30S-OSA3L Inductive Sensor
$64.61
- Cable length
- 2 m
- Sensing range
- 15 mm
- Output type
- AC
- Supply voltage
- 20 ... 250 V AC
Product information
Technical details
Inductive Sensors, M-series cylindrical type, Threaded cylindrical short housing M30, Switching distance 15 mm, Non-flush, IP67, -25 ... 70 °C, 20 ... 250 V AC, 2 - wire AC, NO, 2 m cable
Specifications
MPN Ni15-M30S-OSA3L
| Load current | ≤ 200 mA |
|---|---|
| Sensing surface material | PBT |
| Sensing range | 15 mm |
| Output status | NO |
| Ambient temperature | -25 … +70 ℃ |
| Product size | M30 x 62 mm |
| Connection | Cable |
| Housing material | Nickel-plated brass |
| Cable type | PVC |
| Output type | AC |
| IP rating | IP67 |
| Supply voltage | 20 ... 250 V AC |
| Cable length | 2 m |
| Switching frequency | 40 Hz |
| External dimensions | M30 x 1.5 |
| Mounting | Non-flush |
