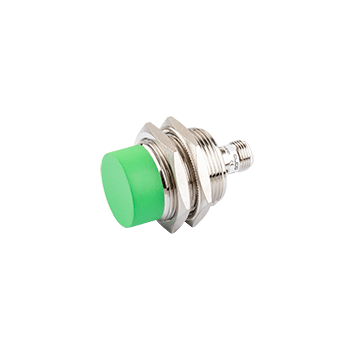

NI15-M30S-ON6L-Q12 Inductive Sensor
$71.05
- Sensing range
- 15 mm
- Output type
- NPN
- Supply voltage
- 10 ... 30 V DC
- IP rating
- IP67
Product information
Technical details
Inductive Sensors, M-series cylindrical type, Threaded cylindrical short housing M30, Switching distance 15 mm, Non-flush, IP67, -25 ... 70 °C, 10 ... 30 V DC, NPN NO, M12 connector
Specifications
MPN NI15-M30S-ON6L-Q12
| Ambient temperature | -25 … +70 ℃ |
|---|---|
| Sensing range | 15 mm |
| Load current | ≤ 200 mA |
| IP rating | IP67 |
| Supply voltage | 10 ... 30 V DC |
| External dimensions | M30 x 1.5 |
| Sensing surface material | PBT |
| Connection | M12, 4-pin |
| Output type | NPN |
| Housing material | Nickel-plated brass |
| Switching frequency | 200 Hz |
| Product size | M30 x 53 mm |
| Output status | NO |
| Mounting | Non-flush |
