ELCO

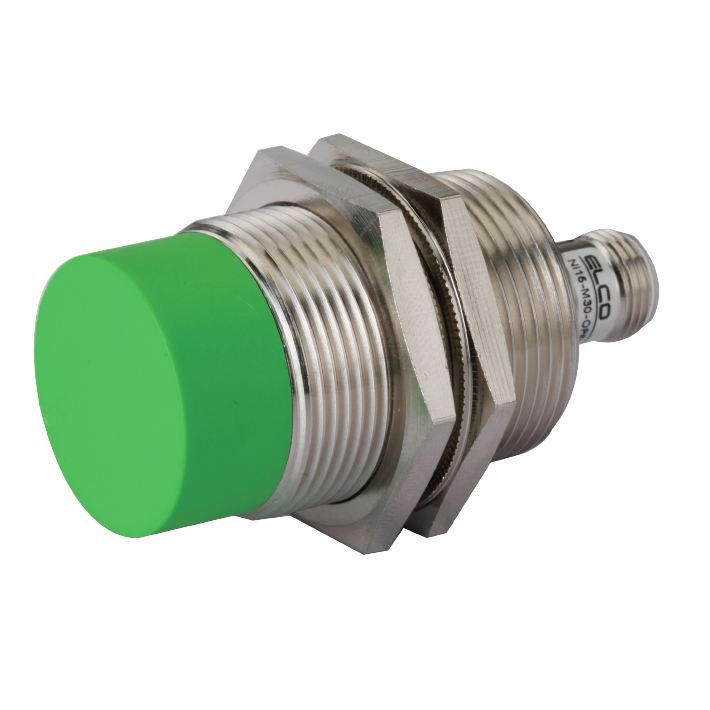

NI15-M30-CSA3L-Q12 Inductive Sensor
$51.22
- Supply voltage
- 20 ... 250 V AC
- IP rating
- IP67
Product information
Technical details
Inductive Sensor, Threaded cylindrical housing M30, Switching distance 15mm, non-flush, IP67, -25...70°C, 2-wire AC NC, M12 connector
Specifications
MPN NI15-M30-CSA3L-Q12
| Series | M Series |
|---|---|
| Design | Thread design M30 |
| Switching distance | 15 mm |
| Installation type | not flush |
| Output | Two-wire normally closed contact |
| Switching frequency | 40 Hz |
| Connection type | M12 plug, 2-pin |
| Operating voltage | 20 ... 250 V AC |
| Dimensions | M30 x 86 mm |
| Housing material | Nickel-plated brass |
| Ambient temperature | -25 ... +70 °C |
| Protection class | IP67 |
| Certificates | CE, RoHS, REACH |
