ELCO

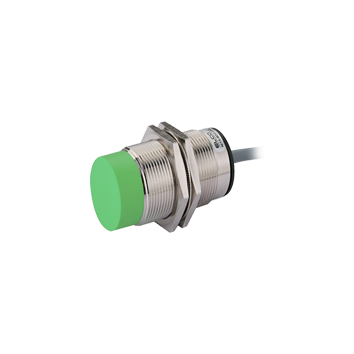

NI15-M30-CN6L/TB40 Inductive Sensor
$98.35
- Cable length
- 2 m
- Sensing range
- 15 mm
- Output type
- NPN
- Supply voltage
- 10 ... 30 V DC
Product information
Technical details
Inductive Sensors, Low temperature resistant type, Threaded cylindrical housing M30, Switching distance 15 mm, Non-flush, IP67, -40 ... 70 °C, 10 ... 30 V DC, NPN NC, 2 m cable
Specifications
MPN NI15-M30-CN6L/TB40
| Cable type | PUR |
|---|---|
| Mounting | Non-flush |
| Output type | NPN |
| Connection | Cable |
| Sensing surface material | PBT |
| Load current | ≤ 200 mA |
| Sensing range | 15 mm |
| External dimensions | M30 x 1.5 |
| IP rating | IP67 |
| Output status | NC |
| Housing material | Nickel-plated brass |
| Switching frequency | 200 Hz |
| Supply voltage | 10 ... 30 V DC |
| Ambient temperature | -40 … +70 ℃ |
| Product size | M30 x 62 mm |
| Cable length | 2 m |
