ELCO

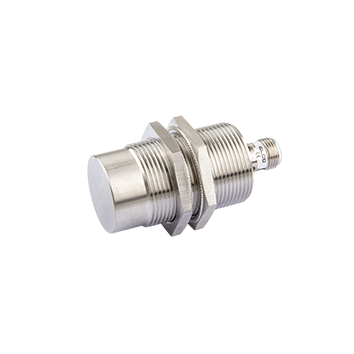

NI15-AM30-CD6L-Q12 Inductive Sensor
$118.39
- Sensing range
- 15 mm
- Output type
- DC
- Supply voltage
- 10 ... 30 V DC
- IP rating
- IP67
Product information
Technical details
Inductive Sensors, All metal packaging, Stainless steel cylindrical housing M30, Switching distance 15 mm, Non-flush, IP67, -25 ... 70 °C, 10 ... 30 V DC, 2 - wire DC, NC, M12 connector
Specifications
MPN NI15-AM30-CD6L-Q12
| Connection | M12, 4-pin |
|---|---|
| Sensing range | 15 mm |
| Housing material | Stainless steel |
| Sensing surface material | Stainless steel |
| Switching frequency | 80 Hz |
| Supply voltage | 10 ... 30 V DC |
| Ambient temperature | -25 … +70 ℃ |
| Output status | NC |
| Load current | ≤ 100 mA |
| Output type | DC |
| External dimensions | M30 x 1 |
| Mounting | Non-flush |
| Product size | M30 x 68 mm |
| IP rating | IP67 |
