ELCO

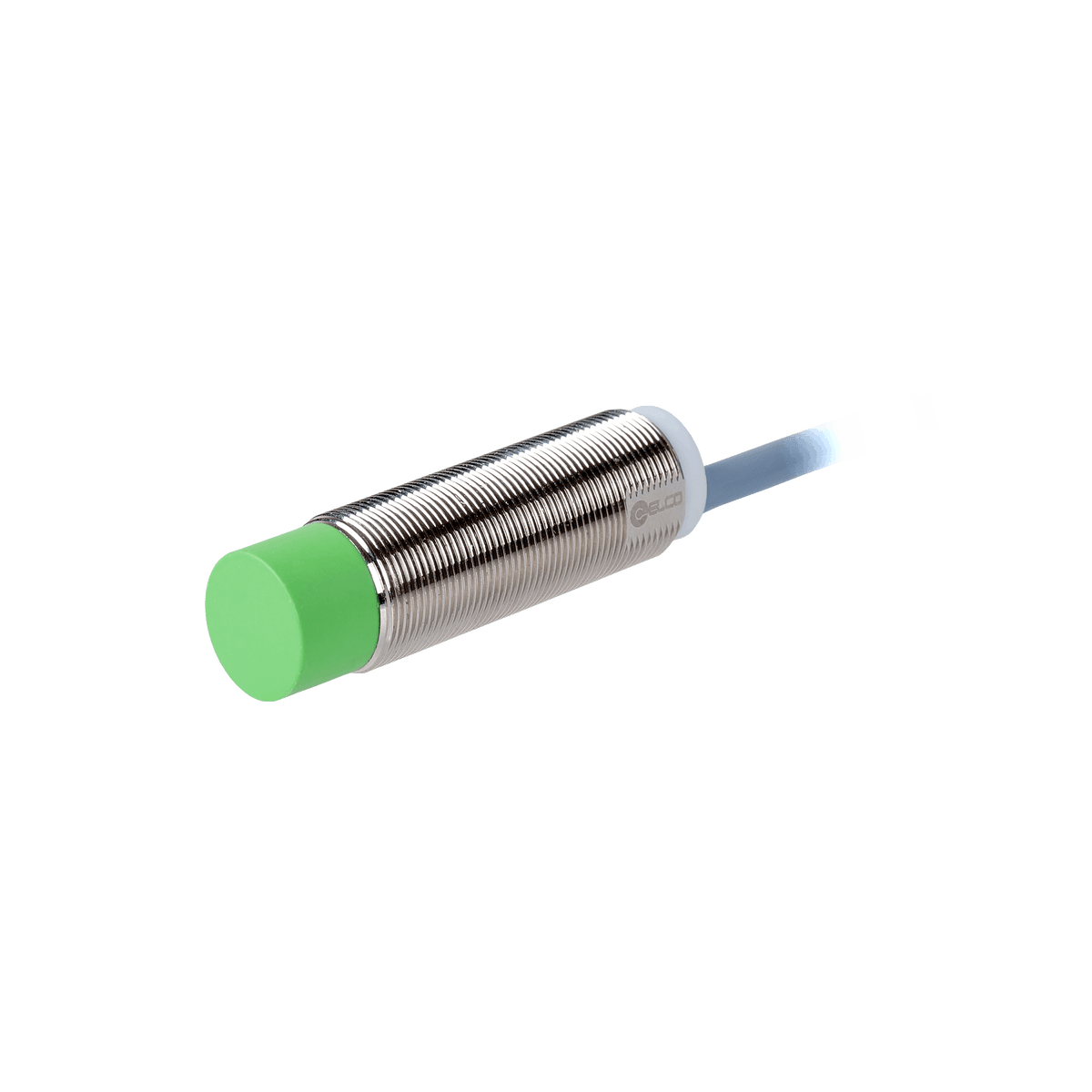

NI12-G18-OD6L Inductive Sensor
$57.66
- Cable length
- 2 m
- Sensing range
- 12 mm
- Output type
- DC
- Supply voltage
- 10 ... 30 V DC
Product information
Technical details
Inductive Sensors, G-series high-performance type, Threaded cylindrical housing M18, Switching distance 12 mm, Non-flush, IP68, -30 ... 85 °C, 10 ... 30 V DC, 2 - wire DC, NO, 2 m cable
Specifications
MPN NI12-G18-OD6L
| Sensing surface material | PBT |
|---|---|
| Cable type | PVC |
| IP rating | IP68 |
| Connection | Cable |
| Cable length | 2 m |
| Output status | NO |
| Sensing range | 12 mm |
| Housing material | Nickel-plated brass |
| Switching frequency | 350 Hz |
| Supply voltage | 10 ... 30 V DC |
| Ambient temperature | -30 … +85 ℃ |
| Load current | ≤ 100 mA |
| External dimensions | M18 x 1 |
| Output type | DC |
| Mounting | Non-flush |
| Product size | M18 x 66 mm |
