ELCO

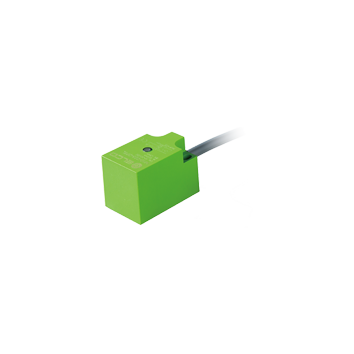

NI10-Q25-CA41L Inductive Sensor
$69.09
- Cable length
- 2 m
- Sensing range
- 10 mm
- Output type
- DC / AC
- Supply voltage
- 20 ... 250 V AC/DC
Product information
Technical details
Inductive Sensors, Square Series, Rectangular housing Q25, Switching distance 10 mm, Non-flush, IP67, -25 ... 70 °C, 20 ... 250 V AC/DC, 2 - wire AC/DC, NC, 2 m cable
Specifications
MPN NI10-Q25-CA41L
| Supply voltage | 20 ... 250 V AC/DC |
|---|---|
| Cable length | 2 m |
| Ambient temperature | -25 … +70 ℃ |
| Connection | Cable |
| Output type | DC / AC |
| Sensing surface material | ABS + PBT |
| Cable type | PVC |
| Sensing range | 10 mm |
| Housing material | ABS + PBT |
| Switching frequency | 300 Hz |
| Load current | DC ≤ 100 mA / AC ≤ 200 mA |
| Output status | NC |
| External dimensions | Square |
| Mounting | Non-flush |
| Product size | 38 x 25 x 25 mm |
| IP rating | IP67 |
