ELCO

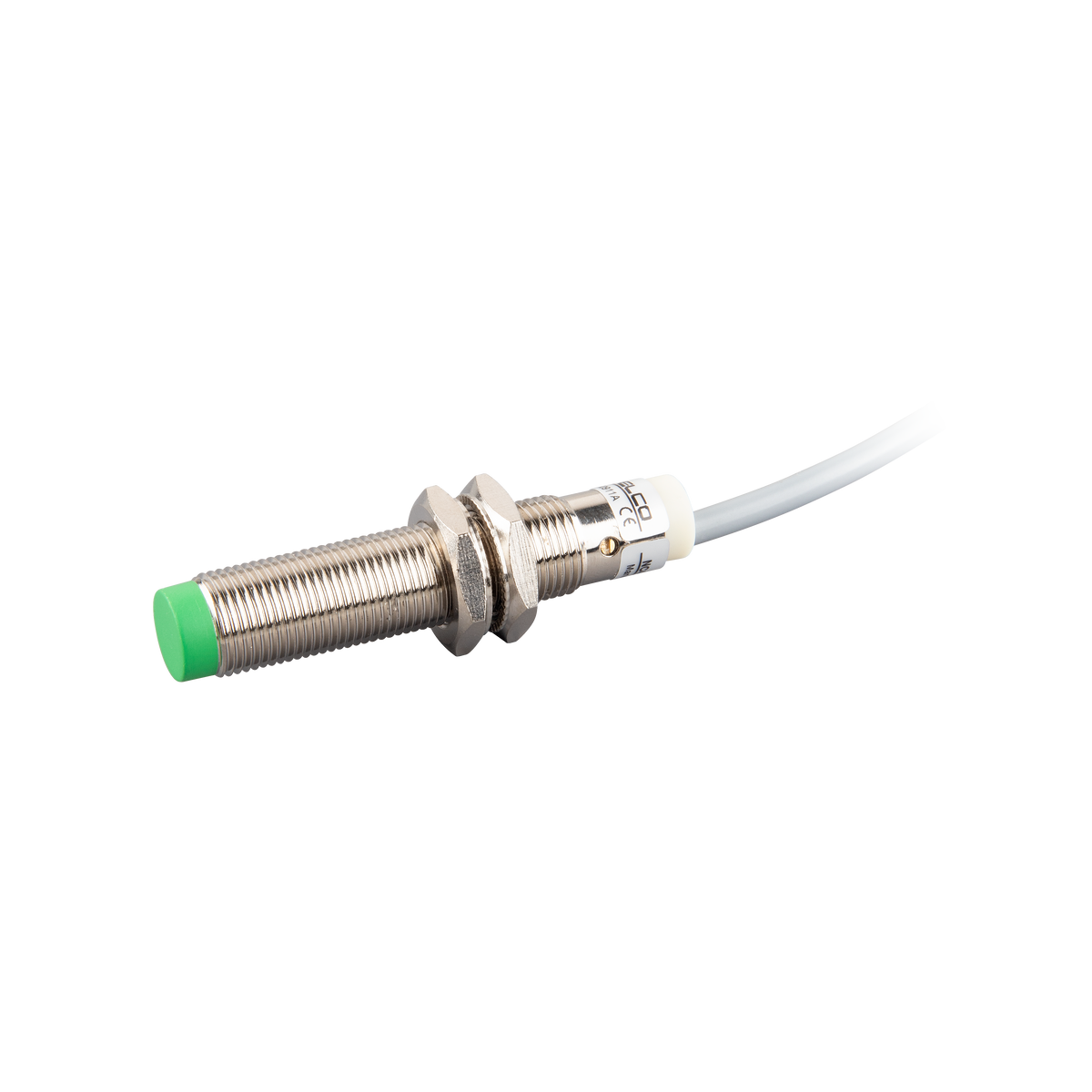

NC4-M12-CP6L Capacitive Sensor
$49.00
- Supply voltage
- 10 ... 30 V DC
- IP rating
- IP67
Product information
Technical details
Capacitive sensor, Metal threaded cylindrical housing M12, Switching distance 4mm, non-flush, IP67, -25...70°C, PNP NC, Cable 2m
Specifications
MPN NC4-M12-CP6L
| Series | M Series |
|---|---|
| Design | Thread design M12 |
| Switching distance | 4 mm |
| Installation type | not flush |
| Output | PNP normally closed contact |
| Switching frequency | 50 Hz |
| Connection type | PVC cable 2 m |
| Operating voltage | 10 ... 30 V DC |
| Dimensions | M12 x 61.5 mm |
| Housing material | Nickel-plated brass |
| Ambient temperature | -25 ... +70 °C |
| Protection class | IP67 |
| Certificates | CE, RoHS, REACH |
