ELCO

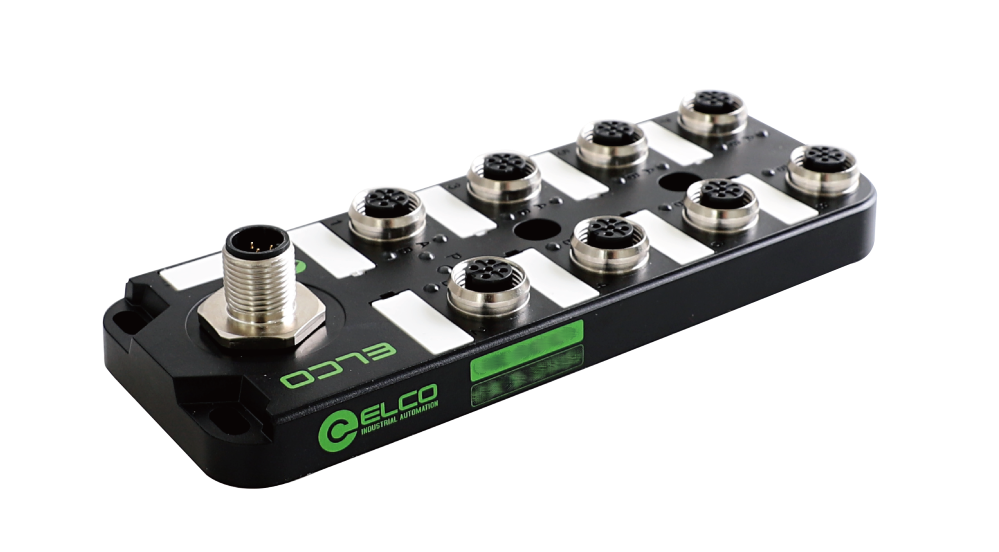

LKHA-088UN-M12 IO-Link-IP67 HUB
$250.96
- Output type
- NPN
- Supply voltage
- 18 ... 30 V DC
- Communication protocol
- IO-Link
- IP rating
- IP67
Product information
Technical details
IO-Link Sensor Hub V1.1.3 Class A Base module with M12 4-pin Connector 8xM12, 5-pole, 24VDC, LED, 8DI+8DI/O, NPN
Specifications
MPN LKHA-088UN-M12
| Communication protocol | IO-Link |
|---|---|
| IP rating | IP67 |
| Housing material | PC + ABS |
| Fieldbus connection | 1 x M12 A-Code |
| Power supply | 18 ... 30 V DC |
| Signal connection | 8 x M12 A-Code |
| Signal type | Digital I/O |
| Number of channels | 8 DI + 8 DI/DO |
| Input type | NPN |
| Output type | NPN |
| Dimensions | 55 x 145 x 28 mm |
| Ambient temperature | -25 ... +70 °C |
| Certificate | CE, UL |
| Storage temperature | -40 ... +85 °C |
