ELCO
FO7.4-1/M20/F Flange-Mount Bulkhead Connector
$39.74
- Connector
- 7/8"
- Coding
- 7/8"
- Cable length
- 1 m
- IP rating
- IP67
Product information
Technical details

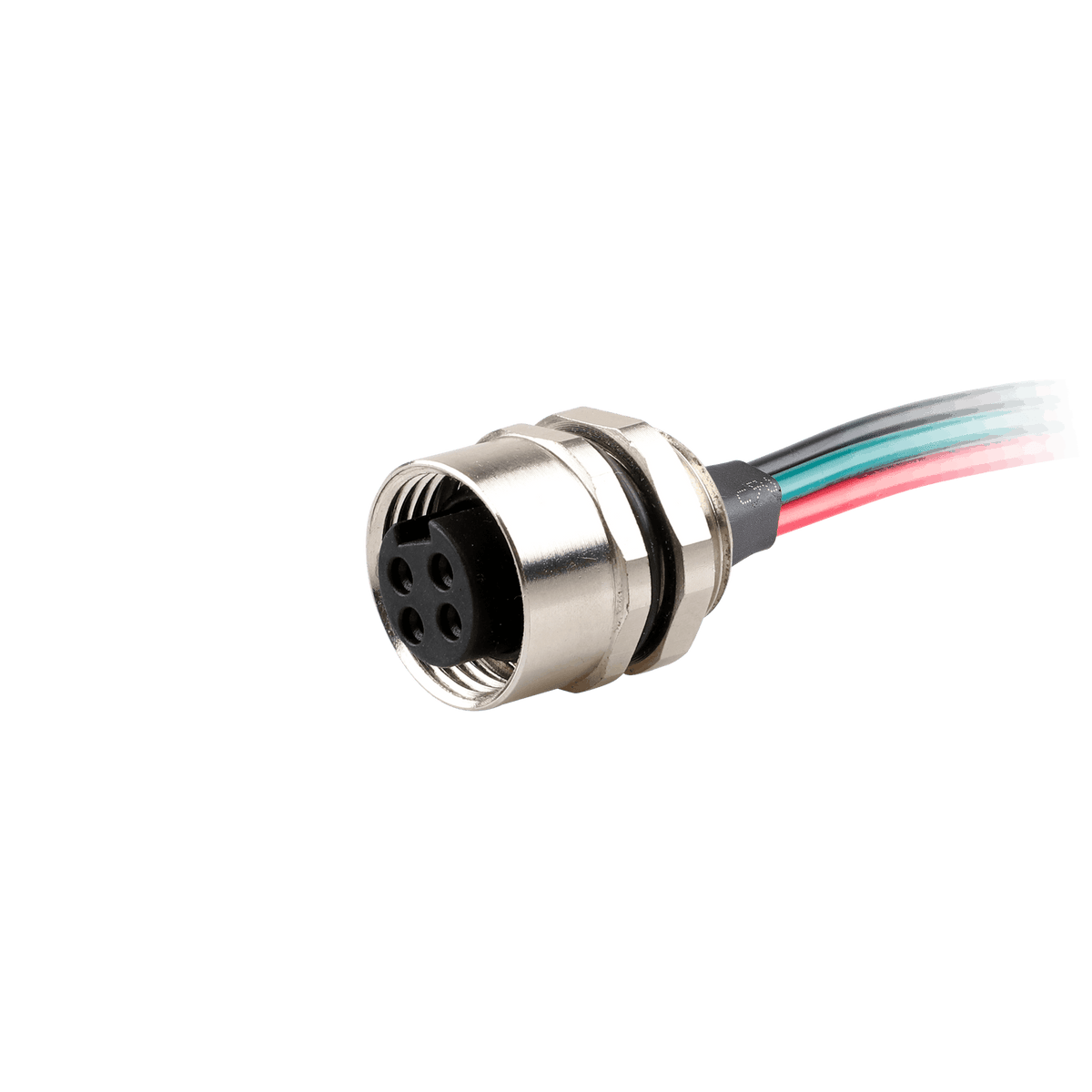

Flange-Mount Bulkhead Connector, with cable, 7/8" 4-pin Straight Female, m20 Hole dimension, Front mount, with PVC Cable, 1 m
Specifications
MPN FO7.4-1/M20/F
| Head 1 Type | 7/8" |
|---|---|
| Head 1 Number of contacts | 4 |
| Rated voltage | 600 V AC/DC |
| Wire cross-section | Max. 1.5 mm² |
| Material contact | TPU |
| Cable length | 1 m |
| IP rating | IP67 |
| Hole dimensions | M20 |
| Coating contact material | Gold-plated copper |
| Rated current | 8 A |
| Cable jacket color | Without Cable jacket |
| Cable jacket material | Without Cable jacket |
| Wire insulation material | PVC |
| Wire insulation color | RD,GN,WH,BK |
| Drag chain | Fixed installation |
| Shielded/Unshielded | NO |
| Termination Type | With cable |
| Product type | Flange-Mount Bulkhead Connector |
| Nut/bolt material | Nickel plated brass |
| Head 1 Coding | 7/8" |
| Installation methods | Front mount |
